2sa1217.pdf datasheet:

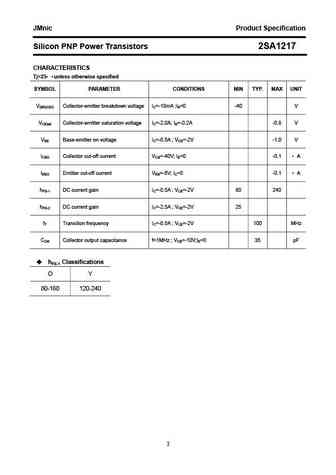

JMnic Product SpecificationSilicon PNP Power Transistors 2SA1217 DESCRIPTION With TO-126 package Complement to type 2SC2877 Good linearity of hFE APPLICATIONS Audio frequency power amplifier Low speed switching Suitable for output stage of 5 watts car radio and car stereo PINNING PIN DESCRIPTION1 Emitter Collector;connected to 2 mounting base 3 BaseAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -40 V VCEO Collector-emitter voltage Open base -40 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -3 A IB Base current -1 A PD Total power dissipation TC=25 10 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA1217 CHARACTERISTICS Tj=25 unless o
