2sc2655.pdf datasheet:

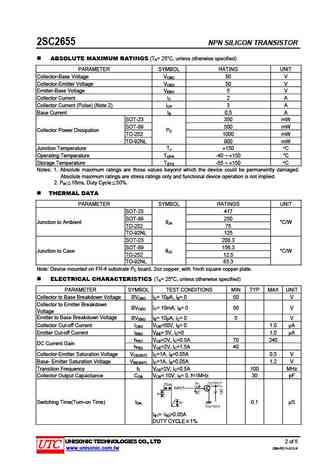

UNISONIC TECHNOLOGIES CO., LTD 2SC2655 NPN SILICON TRANSISTOR POWER AMPLIFIER APPLICATIONS POWER SWITCHING APPLICATIONS FEATURES * Low saturation voltage: VCE(SAT)= 0.5V (Max.) * High speed switching time: TSTG=1.0s (Typ.) ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 32SC2655L-x-AB3-R 2SC2655G-x-AB3-R SOT-89 B C E Tape Reel2SC2655L-x-AE3-R 2SC2655G-x-AE3-R SOT-23 B E C Tape Reel2SC2655L-x-TN3-R 2SC2655G-x-TN3-R TO-252 B C E Tape Reel2SC2655L-x-T9N-B 2SC2655G-x-T9N-B TO-92NL E C B Tape Box 2SC2655L-x-T9N-K 2SC2655G-x-T9N-K TO-92NL E C B BulkNote: Pin Assignment: B: Base C: Collector E: Emitter MARKING SOT-23 SOT-89TO-252 TO-92NLwww.unisonic.com.tw 1 of 5 Copyright 2019 Unisonic Technologies Co., Ltd QW-R211-013.K 2SC2655 NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS (TA= 25
