bc546a bc546b bc546c bc547a bc547b bc547c bc548a bc548b bc548c bc549a bc549b bc549c bc550a bc550b bc550c.pdf datasheet:

bc546a_bc546b_bc546c_bc547a_bc547b_bc547c_bc548a_bc548b_bc548c_bc549a_bc549b_bc549c_bc550a_bc550b_bc550cbc546a_bc546b_bc546c_bc547a_bc547b_bc547c_bc548a_bc548b_bc548c_bc549a_bc549b_bc549c_bc550a_bc550b_bc550c

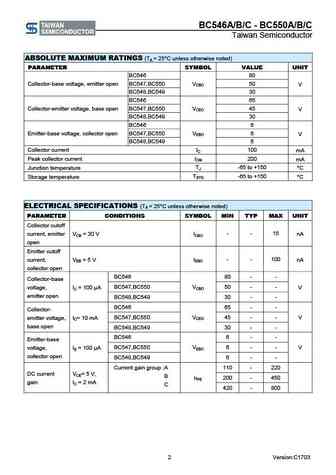

BC546A/B/C - BC550A/B/C Taiwan Semiconductor 500mW, NPN Small Signal Transistor FEATURES KEY PARAMETERS Low power loss, high efficiency PARAMETER VALUE UNIT Ideal for automated placement VCBO 30-80 V High surge current capability VCEO 30-65 V Compliant to RoHS directive 2011/65/EU and VEBO 6 V in accordance to WEEE 2002/96/EC Halogen-free according to IEC 61249-2-21 IC 100 mA hFE 220-800 APPLICATIONS Package TO-92 Switching mode power supply (SMPS) Configuration Single Dice Adapters Lighting application On-board DC/DC converter MECHANICAL DATA Case: TO-92 Molding compound meets UL 94 V-0 flammability rating Moisture sensitivity level: level 1, per J-STD-020 Packing code with suffix "G" means green compound (halogen-free) Terminal: Matte tin plated leads, solderable per
