bf1108 bf1108r 3.pdf datasheet:

bf1108_bf1108r_3bf1108_bf1108r_3

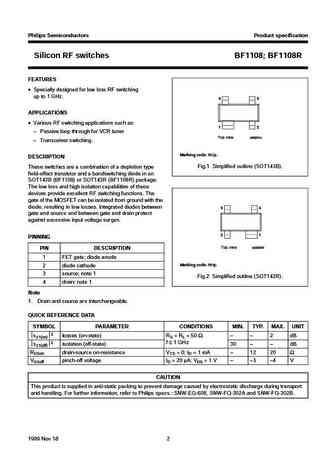

DISCRETE SEMICONDUCTORSDATA SHEETBF1108; BF1108RSilicon RF switchesProduct specification 1999 Nov 18Supersedes data of 1999 Aug 19Philips Semiconductors Product specificationSilicon RF switches BF1108; BF1108RFEATURES Specially designed for low loss RF switchingup to 1 GHz.handbook, 2 columns43APPLICATIONS Various RF switching applications such as:12 Passive loop through for VCR tunerTop view MSB014 Transceiver switching.Marking code: NGp.DESCRIPTIONFig.1 Simplified outline (SOT143B).These switches are a combination of a depletion typefield-effect transistor and a bandswitching diode in anSOT143B (BF1108) or SOT143R (BF1108R) package.The low loss and high isolation capabilities of thesedevices provide excellent RF switching functions. Thegate of the MOSFET can be isolated from ground with thediode, resulting in low l
