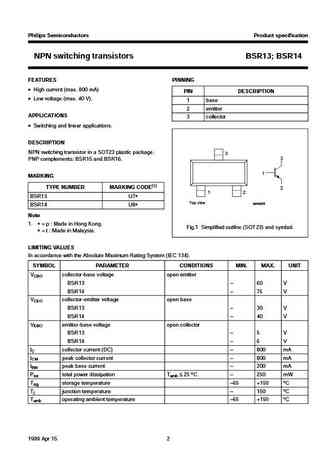

DISCRETE SEMICONDUCTORSDATA SHEEThalfpageM3D088BSR13; BSR14NPN switching transistors1999 Apr 15Product specificationSupersedes data of 1997 Apr 22Philips Semiconductors Product specificationNPN switching transistors BSR13; BSR14FEATURES PINNING High current (max. 800 mA)PIN DESCRIPTION Low voltage (max. 40 V).1 base2 emitterAPPLICATIONS3 collector Switching and linear applications.DESCRIPTIONhandbook, halfpageNPN switching transistor in a SOT23 plastic package.33PNP complements: BSR15 and BSR16.1MARKINGTYPE NUMBER MARKING CODE(1)21 2BSR13 U7Top viewMAM255BSR14 U8Note1. = p : Made in Hong Kong.Fig.1 Simplified outline (SOT23) and symbol. = t : Made in Malaysia.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAMETER CONDITIONS MIN. MAX. UNITV
