cem2192.pdf datasheet:

cem2192cem2192

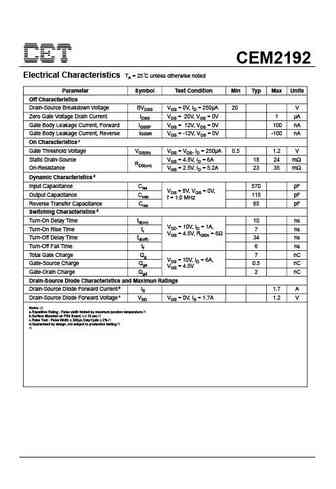

CEM2192Dual N-Channel Enhancement Mode Field Effect TransistorPRELIMINARYFEATURES20V, 8A, RDS(ON) = 24m @VGS = 4.5V. RDS(ON) = 35m @VGS = 2.5V.Super high dense cell design for extremely low RDS(ON).High power and current handing capability.D D D DLead-free plating ; RoHS compliant.8 7 6 5Surface mount Package.SO-81 2 3 41 S S S GABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise notedParameter Symbol Limit UnitsDrain-Source Voltage VDS 20 VGate-Source Voltage VGS 12 VDrain Current-Continuous ID 8 ADrain Current-Pulsed a IDM 32 AMaximum Power Dissipation PD 2.5 WOperating and Store Temperature Range TJ,Tstg -55 to 150 CThermal CharacteristicsParameter Symbol Limit UnitsThermal Resistance, Junction-to-Ambient b RJA 50 C/WThis is preliminary information on a new product in development now . Rev 1. 2012.SepDetails are
