hms15n60 hms15n60f hms15n60d.pdf datasheet:

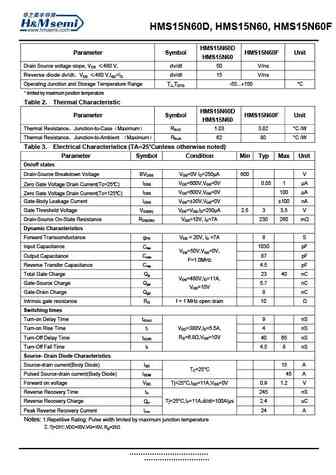

HM 15N60D, HM 15N60, HM 15N60FN-Channel Super Junction Power MOSFET General Description The series of devices use advanced super junction 600 V VDS@Tjmaxtechnology and design to provide excellent RDS(ON) with low RDS(ON)MAX 60 gate charge. This super junction MOSFET fits the industrys ID 1 A AC-DC SMPS requirements for PFC, AC/DC powerconversion, and industrial power applications. Features New technology for high voltage device Low on-resistance and low conduction losses small package Ultra Low Gate Charge cause lower driving requirements 100% Avalanche Tested ROHS compliant Application Power factor correctionPFC Switched mode power supplies(SMPS) Schematic diagram Uninterruptible Power SupplyUPSPackage Marking And Ordering Information Device Device Package Marking HM 15N
