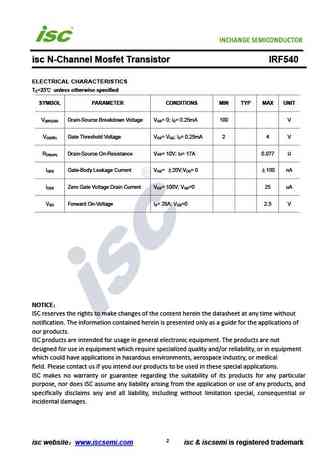

irf540.pdf datasheet:

irf540irf540

isc N-Channel Mosfet Transistor IRF540FEATURESLow RDS(on)V Rated at 20VGSSilicon Gate for Fast Switching SpeedRuggedLow Drive RequirementsMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned especially for high voltage,high speed applications,such as off-line switching power supplies , UPS,AC and DCmotor controls,relay and solenoid drivers.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Voltage 100 VDSSV Gate-Source Voltage-Continuous 20 VGSDrain Current-Continuous@ TC=25 28I ADDrain Current-continuous@ TC=100 20I Drain Current-Single Plused 110 ADMP Total Dissipation @T =25 100 WD CT Max. Operating Junction Temperature 175 jT Storage Temperature -55~175 stgTHERMAL CHARACTERISTICSSYMBOL PARAMETER MAX UNIT
