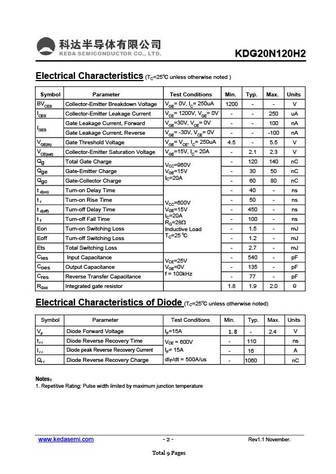

KDG20N120H2 KDG20N120H2 Typical Performance Characteristics Figure1:maximum DC collector current Figure2:power dissipation VS. case temprature VS. case temprature Figure3:forward SOA,TC=25,TJ150 Figure4:reverse bias SOA,TJ=150,VGE=15V www.kedasemi.com - 3 - Rev1.1 November. 2011 Total 9 Pages KDG20N120H2 KDG20N120H2 Figure5:typical IGBT output characteristics, Figure6:typical trans characteristics,VCE=20V,tp=20us TJ=25;tp=300us Figure7:typical diode forward characteristic,tp=300us Figure8:typical VCE VS. VGE,TJ=25 www.kedasemi.com - 4 - Rev1.1 November. Total 9 Pages KDG20N120H2 KDG20N120H2 Figure9: typical VCE VS. VGE,TJ=125 Figure10: typical energy loss VS. IC, TC=25,L=500uH, VCE=600V,VGE=15V,Rg=28 Figure11: typical switching time VS. IC, TC=25, Figure12: typical energy loss VS. Rg,TC=25, L=500uH, VCE=600V
