mmg800k120u6hn.pdf datasheet:

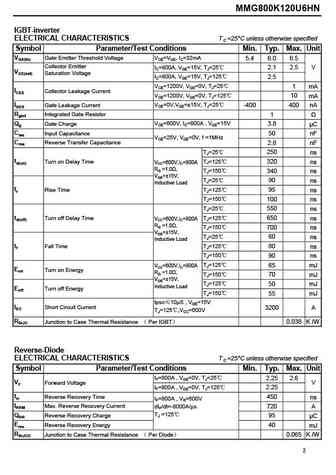

MMG800K120U6HN1200V 800A IGBT ModuleJune 2015 Version 01 RoHS CompliantPRODUCT FEATURES High short circuit capability,self limiting short circuit current IGBT CHIP(T4 Fast Trench+Field Stop technology) VCE(sat) with positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Low switching losses 5K Gate Protected Resistance InsideAPPLICATIONS High frequency switching application Medical applications Motion/servo control UPS systemsIGBT-inverterABSOLUTE MAXIMUM RATINGS T =25C unless otherwise specifiedCSymbol Parameter/Test Conditions Values UnitVCES Collector Emitter Voltage TJ=25 1200VVGES Gate Emitter Voltage 20TC=25 1050IC DC Collector CurrentTC=75 800 AICM Repetitive Peak Collector Current tp=1ms 1600Ptot Power
