pmbt2222 pmbt2222a 4.pdf datasheet:

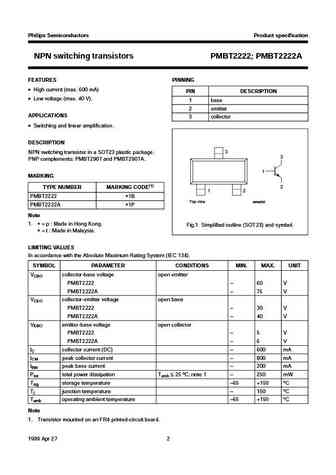

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D088PMBT2222; PMBT2222ANPN switching transistors1999 Apr 27Product specificationSupersedes data of 1997 Sep 09Philips Semiconductors Product specificationNPN switching transistors PMBT2222; PMBT2222AFEATURES PINNING High current (max. 600 mA)PIN DESCRIPTION Low voltage (max. 40 V).1 base2 emitterAPPLICATIONS3 collector Switching and linear amplification.DESCRIPTIONhandbook, halfpage3NPN switching transistor in a SOT23 plastic package.3PNP complements: PMBT2907 and PMBT2907A.1MARKING2TYPE NUMBER MARKING CODE(1)1 2PMBT2222 1BTop viewMAM255PMBT2222A 1PNote1. = p : Made in Hong Kong.Fig.1 Simplified outline (SOT23) and symbol. = t : Made in Malaysia.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PAR
