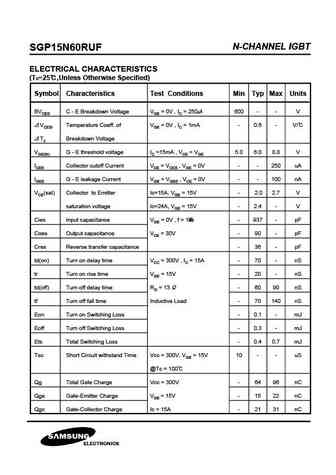

N-CHANNEL IGBT SGP15N60RUFFEATURESTO-220* Short Circuit rated 10uS @Tc=100 * High Speed Switching* Low Saturation Voltage : VCE(sat) = 2.0 V @ Ic=15A* High Input ImpedanceAPPLICATIONSC* AC & DC Motor controls* General Purpose InvertersG* Robotics , Servo Controls* Power Supply* Lamp Ballast EABSOLUTE MAXIMUM RATINGS Symbol Rating UnitsCharacteristicsVCES 600 VCollector-Emitter VoltageVGES 20 VGate-Emitter VoltageIC 24 ACollector Current @ Tc = 25 15 ACollector Current @ Tc = 100 ICM (1) 45 APulsed Collector CurrentPC 160 WMaximum Power Dissipation @Tc = 25 64 WMaximum Power Dissipation @Tc = 100 Tsc 10 uSShort Circuit Withstand TimeTj -55 ~ 150Operating Junction TemperatureTstg -55 ~ 150Storage Temperature RangeTL 300Maximum Lead Temp. For Soldering Purposes, from case for 5 secondsNotes: (1) Repet
