ss8050-l ss8050-h.pdf datasheet:

ss8050-l_ss8050-hss8050-l_ss8050-h

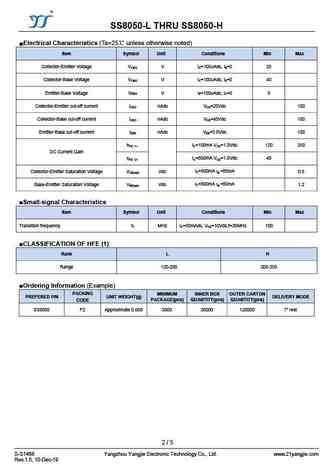

RoHS COMPLIANT SS8050-L THRU SS8050-H NPN General Purpose Amplifier Features Epoxy meets UL-94 V-0 flammability rating Halogen free available upon request by adding suffix HF Moitsure Sensitivity Level 1 High Conductance Surface Mount Package Ideally Suited for Automatic Insertion Mechanical Data Package: SOT-23 Molding compound meets UL 94 V-0 flammability rating,RoHS-compliant, halogen-free Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 Marking: SS8050-L Y1LSS8050-H Y1 Maximum Ratings (Ta=25 unless otherwise noted) Item Symbol Unit Conditions Value Minimum Collector-Emitter Voltage VCEO V IC=100uAdc, IB=0 25 Minimum Collector-Base Voltage VCBO V IC=100uAdc, IE=0 40 Minimum Emitter-Base Voltage VEBO V IE=100uAdc, IC=0 5.0 Collector Current IC A 1.5 Maximum Colle
