tws6604fl.pdf datasheet:

tws6604fltws6604fl

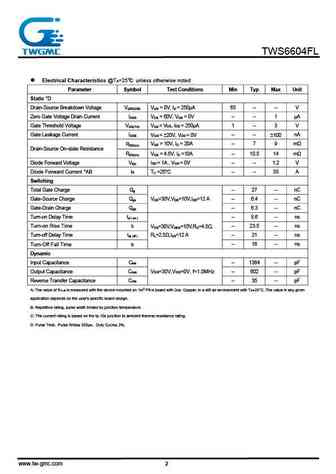

TWS6604FLN-Channel Enhancement Mode Power MOSFET Features General Description VDS = 65V, load switch ID = 54A power supply RDS(ON) @VGS= 10V, TYP 7m synchronous rectifier RDS(ON) @VGS= 4.5V, TYP 10.5m Pin Configurations PDFN3*3-8L Absolute Maximum Ratings @T =25 unless otherwise noted AParameter Symbol Ratings Unit Drain-Source Voltage VDSS 65 V Gate-Source Voltage VGSS 20 V TC=25C 54 Drain Current (Continuous) *AC ID A TC=70 43 C Drain Current (Pulse) *B IDM 216 A Power Dissipation T =25C PD 42 W COperating Temperature/ Storage Temperature TJ/TSTG -55~150 Thermal Resistance Ratings Parameter Symbol Maximum Unit Maximum Junction-to-Case (Drain) Steady State R 3 C/W thJC www.tw-gmc.com 1TWS6604FL Electrical Characteristics @T =25 unless otherwise noted A Param
