JJT10N65SCD Todos los transistores



JJT10N65SCD IGBT Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: JJT10N65SCD

Tipo de transistor: IGBT

Polaridad de transistor: N

ESPECIFICACIONES TECNICAS

Pcⓘ - Máxima potencia disipada: 136 W

|Vce|ⓘ - Tensión máxima colector-emisor: 650 V

|Vge|ⓘ - Tensión máxima puerta-emisor: 20 V

|Ic|ⓘ - Colector de Corriente Continua a 25℃: 20 A

Tjⓘ - Temperatura máxima de unión: 175 ℃

CARACTERÍSTICAS ELÉCTRICAS

|VCEsat|ⓘ - Voltaje de saturación colector-emisor, typ: 1.8 V @25℃

trⓘ - Tiempo de subida, typ: 112 nS

Coesⓘ - Capacitancia de salida, typ: 37 pF

Encapsulados: TO263

 Búsqueda de reemplazo de JJT10N65SCD IGBT

- Selección ⓘ de transistores por parámetros



JJT10N65SCD datasheet

 ..1. Size:3515K  jiejie micro

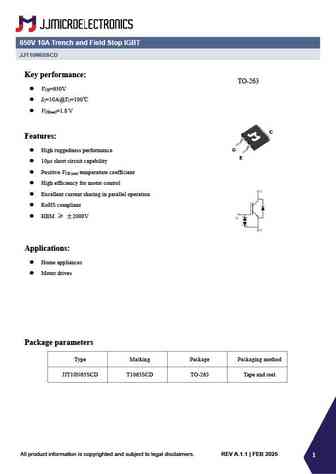

 jjt10n65scd.pdf pdf_icon

JJT10N65SCD

650V 10A Trench and Field Stop IGBT JJT10N65SCD Key performance TO-263 V =650V CE I =10A@T =100 C C V =1.8 V CE(sat) C Features G High ruggedness performance E 10 s short circuit capability Positive V temperature coefficient CE (sat) High efficiency for motor control Excellent current sharing in parallel operation RoHS compliant

 4.1. Size:2552K  jiejie micro

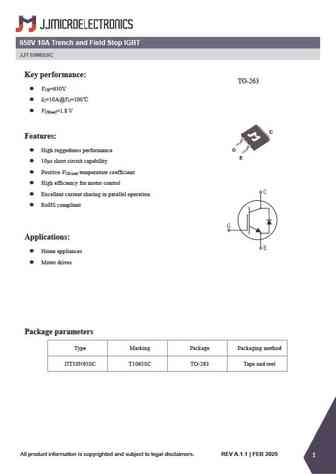

 jjt10n65sc.pdf pdf_icon

JJT10N65SCD

650V 10A Trench and Field Stop IGBT JJT10N65SC Key performance TO-263 V =650V CE I =10A@T =100 C C V =1.8 V CE(sat) C Features G High ruggedness performance E 10 s short circuit capability Positive V temperature coefficient CE (sat) High efficiency for motor control Excellent current sharing in parallel operation RoHS compliant Appl

 5.1. Size:2557K  jiejie micro
 jjt10n65st.pdf pdf_icon

JJT10N65SCD

650V 10A Trench and Field Stop IGBT JJT10N65ST Key performance V =650V CE TO-252 I =10A@T =100 C C V =1.8 V CE(sat) C Features High ruggedness performance G 10 s short circuit capability E Positive V temperature coefficient CE (sat) High efficiency for motor control Excellent current sharing in parallel operation RoHS compliant Appl

 5.2. Size:2850K  jiejie micro

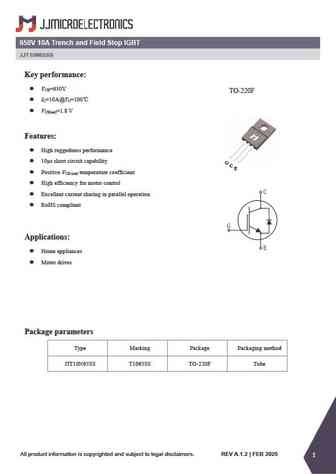

 jjt10n65ss.pdf pdf_icon

JJT10N65SCD

650V 10A Trench and Field Stop IGBT JJT10N65SS Key performance V =650V CE TO-220F I =10A@T =100 C C V =1.8 V CE(sat) Features High ruggedness performance 10 s short circuit capability G C E Positive V temperature coefficient CE (sat) High efficiency for motor control Excellent current sharing in parallel operation RoHS compliant App
