AOT240L MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: AOT240L
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Pdⓘ - Máxima disipación de potencia: 176 W|Vds|ⓘ - Voltaje máximo drenador - fuente: 40 V
|Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
|Id|ⓘ - Corriente continua de drenaje: 105 A
Tjⓘ - Temperatura máxima de unión: 175 °C
CARACTERÍSTICAS ELÉCTRICAS
trⓘ - Tiempo de subida: 10 nS
Cossⓘ - Capacitancia de salida: 1070 pF
Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.0029 Ohm
Paquete / Cubierta: TO-220
Búsqueda de reemplazo de AOT240L MOSFET
AOT240L Datasheet (PDF)

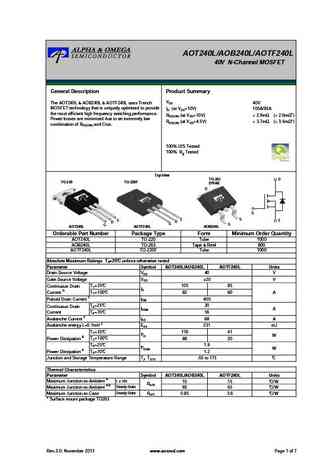

aot240l.pdf

AOT240L/AOB240L/AOTF240L40V N-Channel MOSFETGeneral Description Product SummaryVDSThe AOT240L & AOB240L & AOTF240L uses Trench 40VMOSFET technology that is uniquely optimized to provide ID (at VGS=10V) 105A/85Athe most efficient high frequency switching performance. RDS(ON) (at VGS=10V)
aot240l aob240l aotf240l.pdf

AOT240L/AOB240L/AOTF240L40V N-Channel MOSFETGeneral Description Product SummaryVDSThe AOT240L & AOB240L & AOTF240L uses Trench 40VMOSFET technology that is uniquely optimized to provide ID (at VGS=10V) 105A/85Athe most efficient high frequency switching performance. RDS(ON) (at VGS=10V)

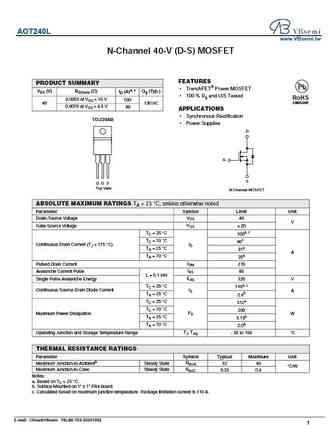

aot240l.pdf

AOT240Lwww.VBsemi.twN-Channel 40-V (D-S) MOSFETFEATURESPRODUCT SUMMARY TrenchFET Power MOSFETVDS (V) RDS(on) ()ID (A)a, c Qg (Typ.) 100 % Rg and UIS TestedRoHS0.0055 at VGS = 10 V 100COMPLIANT 40 130 nC0.0070 at VGS = 4.5 V 90APPLICATIONS Synchronous RectificationTO-220AB Power SuppliesDGSG D STop ViewN-Channel MOSFETABSOLUTE

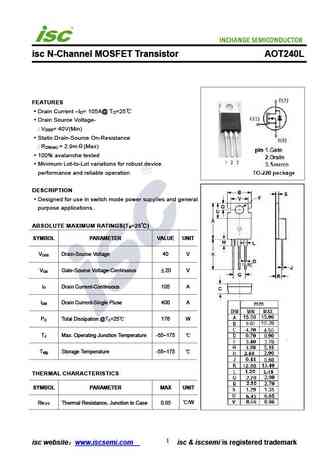

aot240l.pdf

isc N-Channel MOSFET Transistor AOT240LFEATURESDrain Current I = 105A@ T =25D CDrain Source Voltage-: V = 40V(Min)DSSStatic Drain-Source On-Resistance: R = 2.9m(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpo
