AOTF20C60 MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

   Número de Parte: AOTF20C60
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 50 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 600 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 30 V
   |Id|ⓘ - Corriente continua de drenaje: 20 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

   |Vgs(th)|ⓘ - Tensión umbral entre puerta y fuente: 5 V
   Qgⓘ - Carga de la puerta: 52 nC
   trⓘ - Tiempo de subida: 76 nS
   Cossⓘ - Capacitancia de salida: 145 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.25 Ohm
   Paquete / Cubierta: TO-220F

Búsqueda de reemplazo de MOSFET AOTF20C60

AOTF20C60 Datasheet (PDF)

..1. Size:263K aosemi
aotf20c60.pdf

AOT20C60/AOB20C60/AOTF20C60600V,20A N-Channel MOSFETGeneral Description Product Summary VDS @ Tj,max 700V Trench Power AlphaMOS-II technology Low RDS(ON) IDM 145A Low Ciss and Crss RDS(ON),max

0.1. Size:462K aosemi
aotf20c60p.pdf

AOTF20C60P600V,20A N-Channel MOSFETGeneral Description Product Summary Trench Power AlphaMOS-II technology VDS @ Tj,max 700V Low RDS(ON) IDM 80A Low Ciss and Crss RDS(ON),max

0.2. Size:252K inchange semiconductor
aotf20c60p.pdf

isc N-Channel MOSFET Transistor AOTF20C60PFEATURESDrain Current I =20A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R =0.25(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONGeneral Lighting for LED and CCFLAC/DC Power supplies for Ind

8.1. Size:576K aosemi
aotf20b65ln2.pdf

AOTF20B65LN2TM 650V, 20A AlphaIGBTWith Soft and Fast Recovery Anti-Parallel DiodeGeneral Description Product SummaryVCE Latest AlphaIGBT (IGBT) technology 650V 650V breakdown voltageIC (TC=100 20AC) Very low VCE(sat)VCE(sat) (TJ=25 1.54VC) Very fast and soft recovery freewheeling diode High efficient turn-on di/dt controllability Low Turn-Of

8.2. Size:331K aosemi
aotf20n40.pdf

AOTF20N40400V,20A N-Channel MOSFETGeneral Description Product Summary VDS500@150The AOTF20N40 is fabricated using an advanced highvoltage MOSFET process that is designed to deliver high ID (at VGS=10V) 20Alevels of performance and robustness in popular AC-DC RDS(ON) (at VGS=10V)

8.3. Size:405K aosemi
aot20s60 aob20s60 aotf20s60.pdf

AOT20S60/AOB20S60/AOTF20S60TM600V 20A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 700VThe AOT20S60& AOB20S60 & AOTF20S60 have beenfabricated using the advanced MOSTM high voltage IDM 80Aprocess that is designed to deliver high levels of RDS(ON),max 0.199performance and robustness in switching applications. Qg,typ 20nCBy providin

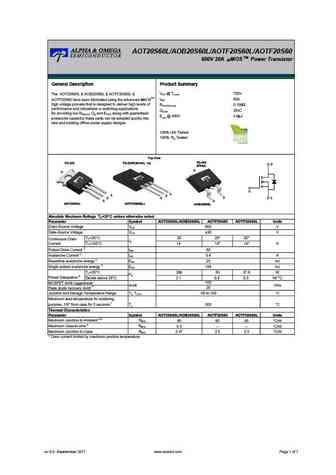

8.4. Size:325K aosemi
aotf20s60l.pdf

8.5. Size:324K aosemi
aotf20s60.pdf

8.6. Size:540K aosemi
aotf20n60.pdf

AOT20N60/AOTF20N60600V,20A N-Channel MOSFETGeneral Description Product Summary VDS700V@150The AOT20N60 & AOTF20N60 have been fabricatedusing an advanced high voltage MOSFET process that is ID (at VGS=10V) 20Adesigned to deliver high levels of performance and RDS(ON) (at VGS=10V)

8.7. Size:1308K aosemi
aotf20b65m2.pdf

AOTF20B65M2TM650V, 20A AlphaIGBTWith soft and fast recovery anti-parallel diodeGeneral Description Product SummaryVCE Latest AlphaIGBT (IGBT) technology 650V 650V breakdown voltageIC (TC=100 20AC) Very fast and soft recovery freewheeling diodeVCE(sat) (TJ=25 1.7VC) High efficient turn-on di/dt controllability Low VCE(sat) enables high efficiencie

8.8. Size:1283K aosemi
aotf20b65m1.pdf

AOTF20B65M1TM650V, 20A AlphaIGBTWith soft and fast recovery anti-parallel diodeGeneral Description Product SummaryVCE Latest AlphaIGBT (IGBT) technology 650V 650V breakdown voltageIC (TC=100 20AC) Very fast and soft recovery freewheeling diodeVCE(sat) (TJ=25 1.7VC) High efficient turn-on di/dt controllability Low VCE(sat) enables high efficiencie

8.9. Size:251K inchange semiconductor
aotf20n40.pdf

isc N-Channel MOSFET Transistor AOTF20N40FEATURESDrain Current I =20A@ T =25D CDrain Source Voltage-: V =400V(Min)DSSStatic Drain-Source On-Resistance: R =0.25(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpos

8.10. Size:252K inchange semiconductor
aotf20s60l.pdf

isc N-Channel MOSFET Transistor AOTF20S60LFEATURESDrain Current I = 20A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R =0.199(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpur

8.11. Size:252K inchange semiconductor
aotf20s60.pdf

isc N-Channel MOSFET Transistor AOTF20S60FEATURESDrain Current I = 20A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R =0.199(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurp

8.12. Size:252K inchange semiconductor
aotf20n60.pdf

isc N-Channel MOSFET Transistor AOTF20N60FEATURESDrain Current I = 20A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R =0.37(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpo
