AOTF8N50 Todos los transistores



AOTF8N50 MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: AOTF8N50
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 38.5 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 500 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 30 V
   |Id|ⓘ - Corriente continua de drenaje: 8 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

   |Vgs(th)|ⓘ - Tensión umbral entre puerta y fuente: 4.6 V
   Qgⓘ - Carga de la puerta: 23.6 nC
   trⓘ - Tiempo de subida: 47 nS
   Cossⓘ - Capacitancia de salida: 93 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.85 Ohm
   Paquete / Cubierta: TO-220F

 Búsqueda de reemplazo de MOSFET AOTF8N50



AOTF8N50 Datasheet (PDF)

 ..1. Size:159K  aosemi
aotf8n50.pdf

AOTF8N50
AOTF8N50

AOT8N50/AOTF8N50500V, 8A N-Channel MOSFETGeneral Description Product Summary VDS600V@150The AOT8N50 & AOTF8N50 have been fabricated usingan advanced high voltage MOSFET process that is ID (at VGS=10V) 8Adesigned to deliver high levels of performance and RDS(ON) (at VGS=10V)

 ..2. Size:276K  aosemi
aot8n50 aotf8n50.pdf

AOTF8N50
AOTF8N50

AOT8N50/AOTF8N50500V, 9A N-Channel MOSFETGeneral Description Product Summary VDS600V@150The AOT8N50 & AOTF8N50 have been fabricated usingan advanced high voltage MOSFET process that is ID (at VGS=10V) 9Adesigned to deliver high levels of performance and RDS(ON) (at VGS=10V)

 ..3. Size:252K  inchange semiconductor
aotf8n50.pdf

AOTF8N50
AOTF8N50

isc N-Channel MOSFET Transistor AOTF8N50FEATURESDrain Current I = 8A@ T =25D CDrain Source Voltage-: V = 500V(Min)DSSStatic Drain-Source On-Resistance: R = 0.85(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpo

 8.1. Size:349K  aosemi
aotf8n80.pdf

AOTF8N50
AOTF8N50

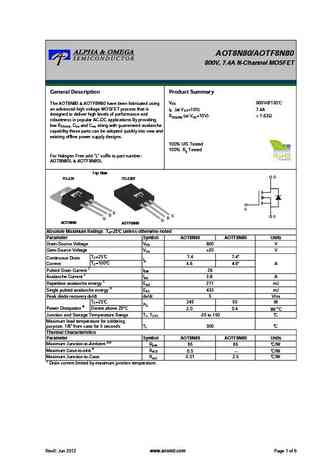

AOT8N80/AOTF8N80800V, 7.4A N-Channel MOSFETGeneral Description Product Summary VDS900V@150The AOT8N80 & AOTF8N80 have been fabricated usingan advanced high voltage MOSFET process that is ID (at VGS=10V) 7.4Adesigned to deliver high levels of performance and RDS(ON) (at VGS=10V)

 8.2. Size:441K  aosemi
aotf8n60.pdf

AOTF8N50
AOTF8N50

AOT8N60/AOTF8N60600V,8A N-Channel MOSFETGeneral Description Product Summary VDS700V@150The AOT8N60 & AOTF8N60 have been fabricated usingan advanced high voltage MOSFET process that is ID (at VGS=10V) 8Adesigned to deliver high levels of performance and RDS(ON) (at VGS=10V)

 8.3. Size:154K  aosemi
aotf8n65.pdf

AOTF8N50
AOTF8N50

AOT8N65/AOTF8N65650V, 8A N-Channel MOSFETGeneral Description Product Summary VDS750V@150The AOT8N65 & AOTF8N65 have been fabricated usingan advanced high voltage MOSFET process that is ID (at VGS=10V) 8Adesigned to deliver high levels of performance and RDS(ON) (at VGS=10V)

 8.4. Size:206K  inchange semiconductor
aotf8n80.pdf

AOTF8N50
AOTF8N50

INCHANGE Semiconductorisc N-Channel MOSFET Transistor AOTF8N80FEATURESWith TO-220 packagingHigh speed switchingVery high commutation ruggednessEasy to use100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationzAPPLICATIONSPFC stagesLCD & PDP TVPower supplySwitching applicationsABSOLUTE MAXIMUM

 8.5. Size:252K  inchange semiconductor
aotf8n60.pdf

AOTF8N50
AOTF8N50

isc N-Channel MOSFET Transistor AOTF8N60FEATURESDrain Current I = 8A@ T =25D CDrain Source Voltage-: V = 600V(Min)DSSStatic Drain-Source On-Resistance: R = 0.9(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpos

 8.6. Size:252K  inchange semiconductor
aotf8n65.pdf

AOTF8N50
AOTF8N50

isc N-Channel MOSFET Transistor AOTF8N65FEATURESDrain Current I = 8A@ T =25D CDrain Source Voltage-: V = 650V(Min)DSSStatic Drain-Source On-Resistance: R = 1.15(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpo
