AP25N170I MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

   Número de Parte: AP25N170I
   Código: 25N170
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 31.2 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 250 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 19 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

   |Vgs(th)|ⓘ - Tensión umbral entre puerta y fuente: 5 V
   Qgⓘ - Carga de la puerta: 25 nC
   trⓘ - Tiempo de subida: 20 nS
   Cossⓘ - Capacitancia de salida: 225 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.17 Ohm
   Paquete / Cubierta: TO220F

Búsqueda de reemplazo de MOSFET AP25N170I

AP25N170I Datasheet (PDF)

..1. Size:182K ape
ap25n170i.pdf

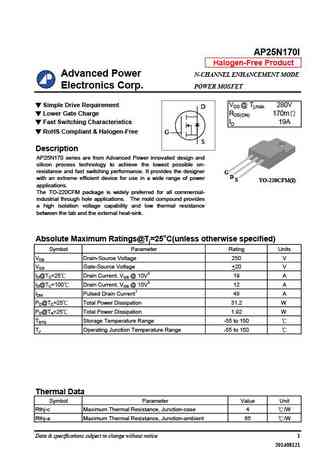

AP25N170IHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Simple Drive Requirement VDS @ Tj,max. 280VD Lower Gate Charge RDS(ON) 170m Fast Switching Characteristics ID 19A RoHS Compliant & Halogen-FreeGSDescriptionAP25N170 series are from Advanced Power innovated design andsilicon process technology to achieve th
