P50B6EA MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: P50B6EA
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 62.5 W
Voltaje máximo drenador - fuente |Vds|: 60 V
Voltaje máximo fuente - puerta |Vgs|: 20 V
Corriente continua de drenaje |Id|: 50 A
Temperatura máxima de unión (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 2.5 V
Carga de la puerta (Qg): 50 nC
Tiempo de subida (tr): 225 nS
Conductancia de drenaje-sustrato (Cd): 355 pF
Resistencia entre drenaje y fuente RDS(on): 0.0085 Ohm
Paquete / Cubierta: TO-252
Búsqueda de reemplazo de MOSFET P50B6EA
P50B6EA Datasheet (PDF)
p50b6ea.pdf

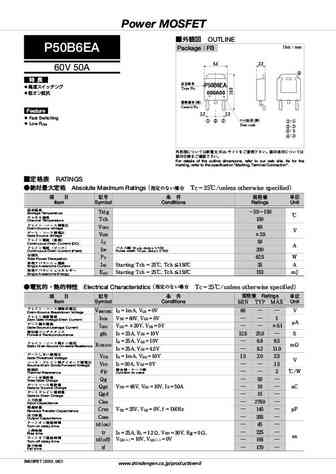

P we MOS Eo r F T OUT IELNUntimmP cae BakgFP 0 6 A5B E 6 V5A0 0P50B6EA 000A00 F aueetr FsS tat wihncig L wRoON
auirgp50b60pd1.pdf
AUIRGP50B60PD1AUTOMOTIVE GRADE AUIRGP50B60PD1-EWARP2 SERIES IGBT WITHC VCES = 600VULTRAFAST SOFT RECOVERY DIODEVCE(on) typ. = 2.00V@ VGE = 15V IC = 33AApplications Automotive HEV and EVEquivalent MOSFET PFC and ZVS SMPS CircuitsGParameters FeaturesRCE(on) typ. = 61mE Low VCE(ON) NPT Technology, Positive TemperatureID (FET equivalent) = 50ACoefficie
irgp50b60pd1-e.pdf
PD - 96170SMPS IGBTIRGP50B60PD1-EPWARP2 SERIES IGBT WITHULTRAFAST SOFT RECOVERY DIODEC VCES = 600VVCE(on) typ. = 2.00VApplications@ VGE = 15V IC = 33A Telecom and Server SMPS PFC and ZVS SMPS Circuits Uninterruptable Power SuppliesEquivalent MOSFETG Consumer Electronics Power SuppliesParameters Lead-FreeRCE(on) typ. = 61mEFeaturesID (FE
irgp50b60pd.pdf
PD - 94624BSMPS IGBT IRGP50B60PDWARP2 SERIES IGBT WITHULTRAFAST SOFT RECOVERY DIODECVCES = 600VVCE(on) typ. = 2.00VApplications@ VGE = 15V IC = 33A Telecom and Server SMPS PFC and ZVS SMPS Circuits Uninterruptable Power SuppliesEquivalent MOSFETG Consumer Electronics Power SuppliesParameters RCE(on) typ. = 61mEFeaturesID (FET equivalent) = 50
irgp50b60pd1.pdf
PD - 94625BSMPS IGBT IRGP50B60PD1WARP2 SERIES IGBT WITHULTRAFAST SOFT RECOVERY DIODECVCES = 600VVCE(on) typ. = 2.00VApplications@ VGE = 15V IC = 33A Telecom and Server SMPS PFC and ZVS SMPS Circuits Uninterruptable Power SuppliesEquivalent MOSFETG Consumer Electronics Power SuppliesParameters RCE(on) typ. = 61mEFeaturesID (FET equivalent) = 5
irgp50b60pd1pbf.pdf
PD - 95330ASMPS IGBTIRGP50B60PD1PbFWARP2 SERIES IGBT WITHULTRAFAST SOFT RECOVERY DIODEC VCES = 600VVCE(on) typ. = 2.00VApplications@ VGE = 15V IC = 33A Telecom and Server SMPS PFC and ZVS SMPS Circuits Uninterruptable Power SuppliesEquivalent MOSFETG Consumer Electronics Power SuppliesParameters Lead-FreeRCE(on) typ. = 61mEFeaturesID (F
