NTLUS3A18PZTBG MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

   Número de Parte: NTLUS3A18PZTBG
   Código: AC
   Tipo de FET: MOSFET
   Polaridad de transistor: P

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 0.7 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 20 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 8 V
   |Id|ⓘ - Corriente continua de drenaje: 5.1 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

   |Vgs(th)|ⓘ - Tensión umbral entre puerta y fuente: 1 V
   Qgⓘ - Carga de la puerta: 28 nC
   trⓘ - Tiempo de subida: 15 nS
   Cossⓘ - Capacitancia de salida: 240 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.018 Ohm
   Paquete / Cubierta: UDFN6

Búsqueda de reemplazo de MOSFET NTLUS3A18PZTBG

NTLUS3A18PZTBG Datasheet (PDF)

..1. Size:143K onsemi
ntlus3a18pztbg ntlus3a18pztcg ntlus3a18pz ntlus3a18pztag.pdf

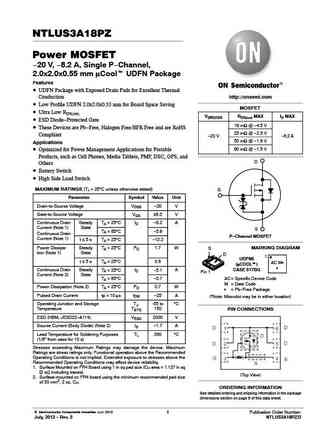

NTLUS3A18PZPower MOSFET-20 V, -8.2 A, Single P-Channel,2.0x2.0x0.55 mm mCoolt UDFN PackageFeatures UDFN Package with Exposed Drain Pads for Excellent ThermalConduction http://onsemi.com Low Profile UDFN 2.0x2.0x0.55 mm for Board Space SavingMOSFET Ultra Low RDS(on)V(BR)DSS RDS(on) MAX ID MAX ESD Diode-Protected Gate18 mW @ -4.5 V These Devices are Pb-Fre

3.1. Size:222K onsemi
ntlus3a18pz.pdf

NTLUS3A18PZMOSFET Power, Single,P-Channel, UDFN,2.0x2.0x0.55 mm-20 V, -8.2 Awww.onsemi.comFeatures UDFN Package with Exposed Drain Pads for Excellent ThermalMOSFETConductionV(BR)DSS RDS(on) MAX ID MAX Low Profile UDFN 2.0x2.0x0.55 mm for Board Space Saving18 mW @ -4.5 V Ultra Low RDS(on)25 mW @ -2.5 V-20 V -8.2 A ESD Diode-Protected Gate50 mW @

7.1. Size:127K onsemi
ntlus3a39pztbg ntlus3a39pz ntlus3a39pztag.pdf

NTLUS3A39PZPower MOSFET-20 V, -5.2 A, Single P-Channel, ESD,1.6x1.6x0.55 mm UDFN mCoolt PackageFeatures UDFN Package with Exposed Drain Pads for Excellent Thermalhttp://onsemi.comConduction Low Profile UDFN 1.6 x 1.6 x 0.55 mm for Board Space Saving MOSFET Ultra Low RDS(on)V(BR)DSS RDS(on) MAX ID MAX These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS

7.2. Size:133K onsemi
ntlus3a40pztag ntlus3a40pztbg.pdf

NTLUS3A40PZPower MOSFET-20 V, -9.4 A, mCoolt Single P-Channel,ESD, 2.0x2.0x0.55 mm UDFN PackageFeatures UDFN Package with Exposed Drain Pads for Excellent Thermalhttp://onsemi.comConductionMOSFET Low Profile UDFN 2.0x2.0x0.55 mm for Board Space SavingV(BR)DSS RDS(on) MAX ID MAX Lowest RDS(on) in 2.0x2.0 Package ESD Protected 29 mW @ -4.5 V These Devices

7.3. Size:139K onsemi
ntlus3a90pz.pdf

NTLUS3A90PZPower MOSFET-20 V, -5.0 A, mCoolt Single P-Channel,ESD, 1.6x1.6x0.55 mm UDFN PackageFeatures UDFN Package with Exposed Drain Pads for Excellent Thermalhttp://onsemi.comConductionMOSFET Low Profile UDFN 1.6x1.6x0.55 mm for Board Space SavingV(BR)DSS RDS(on) MAX ID MAX Lowest RDS(on) in 1.6x1.6 Package ESD Protected 62 mW @ -4.5 V These Devices

7.4. Size:131K onsemi
ntlus3a90pztag ntlus3a90pztbg.pdf

7.5. Size:141K onsemi
ntlus3a40pz.pdf

NTLUS3A40PZPower MOSFET-20 V, -9.4 A, mCoolt Single P-Channel,ESD, 2.0x2.0x0.65 mm UDFN PackageFeatures UDFN Package with Exposed Drain Pads for Excellent Thermalhttp://onsemi.comConductionMOSFET Low Profile UDFN 2.0x2.0x0.65 mm for Board Space SavingV(BR)DSS RDS(on) MAX ID MAX Lowest RDS(on) in 2.0x2.0 Package ESD Protected 29 mW @ -4.5 V These Devices

Otros transistores... IRFP344 , IRFP350 , IRFP350A , IRFP350FI , IRFP350LC , IRFP351 , IRFP352 , IRFP353 , 20N50 , IRFP360 , IRFP360LC , IRFP3710 , IRFP430 , IRFP431 , IRFP432 , IRFP433 , IRFP440 .
