ATM2N65TF Todos los transistores



ATM2N65TF MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: ATM2N65TF
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 21 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 650 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 30 V
   |Id|ⓘ - Corriente continua de drenaje: 2 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 40 nS
   Cossⓘ - Capacitancia de salida: 40 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 5 Ohm
   Paquete / Cubierta: TO220F


 Búsqueda de reemplazo de ATM2N65TF MOSFET

   - Selección ⓘ de transistores por parámetros



ATM2N65TF Datasheet (PDF)

 ..1. Size:410K  agertech
 atm2n65tf.pdf pdf_icon

ATM2N65TF

ATM2N65TF N-Channel Enhancement Mode Power MOSFET Drain-Source Voltage: 650V Continuous Drain Current: 2A DESCRIPTION The ATM2N65TF is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed sw

 6.1. Size:488K  agertech
 atm2n65te.pdf pdf_icon

ATM2N65TF

ATM2N65TE N-Channel Enhancement Mode Power MOSFET Drain-Source Voltage: 650V Continuous Drain Current: 2A DESCRIPTION The ATM2N65TE is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed sw

 6.2. Size:452K  agertech
 atm2n65td.pdf pdf_icon

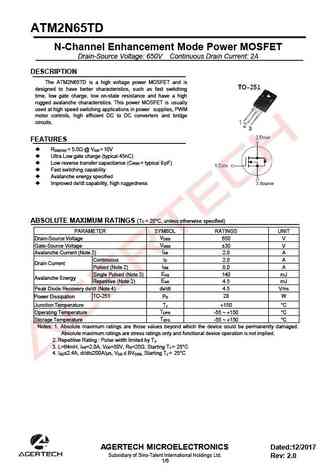

ATM2N65TF

ATM2N65TD N-Channel Enhancement Mode Power MOSFET Drain-Source Voltage: 650V Continuous Drain Current: 2A DESCRIPTION The ATM2N65TD is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed sw
