P3606NEA MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

   Número de Parte: P3606NEA
   Tipo de FET: MOSFET
   Polaridad de transistor: NP

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 23 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 60 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 16 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

   trⓘ - Tiempo de subida: 18 nS
   Cossⓘ - Capacitancia de salida: 72 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.038 Ohm
   Paquete / Cubierta: PDFN3X3P

Búsqueda de reemplazo de MOSFET P3606NEA

P3606NEA Datasheet (PDF)

..1. Size:553K niko-sem
p3606nea.pdf

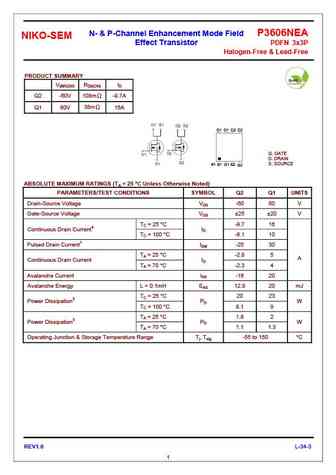

N- & P-Channel Enhancement Mode Field P3606NEA NIKO-SEM Effect Transistor PDFN 3x3P Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) ID Q2 -60V 108m -9.7A Q1 60V 38m 16A D1 D1 D2 D2G. GATE D. DRAIN S. SOURCE #1 S1 G1 S2 G2ABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Q2 Q1 UNITS Drain-Source Voltage

9.1. Size:480K unikc
p3606hk.pdf

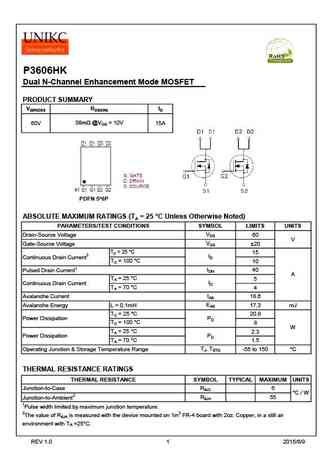

P3606HKDual N-Channel Enhancement Mode MOSFETPRODUCT SUMMARYV(BR)DSS RDS(ON) ID38m @VGS = 10V60V 15APDFN 5*6PABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted)PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITSVDSDrain-Source Voltage 60VVGSGate-Source Voltage 20TC = 25 C15IDContinuous Drain Current3TC = 100 C10IDM40Pulsed Drain Cur

9.2. Size:481K unikc
p3606bd.pdf

P3606BDN-Channel Enhancement Mode MOSFETPRODUCT SUMMARYV(BR)DSS RDS(ON) ID36m @VGS = 10V60V 22ATO-252ABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted)PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITSVDSDrain-Source Voltage 60VVGSGate-Source Voltage 20TC= 25 C22IDContinuous Drain CurrentTC= 100 C14AIDM45Pulsed Drain Current1I

9.3. Size:368K niko-sem
p3606bk.pdf

P3606BK NIKO-SEM N-Channel Enhancement Mode PDFN 5x6P Field Effect Transistor Halogen-Free & Lead-Free DD D D DPRODUCT SUMMARY V(BR)DSS RDS(ON) ID G60V 40m 17A G. GATE D. DRAIN S. SOURCE #1 S S S GSABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITS Drain-Source Voltage VDS 60 V Gate-Source Vol

9.4. Size:782K niko-sem
p3606hk.pdf

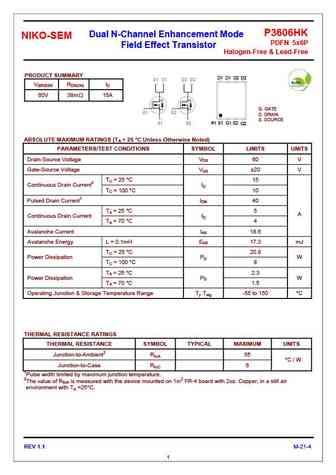

P3606HK Dual N-Channel Enhancement Mode NIKO-SEM PDFN 5x6P Field Effect Transistor Halogen-Free & Lead-Free PRODUCT SUMMARY D1 D1 D2 D2V(BR)DSS RDS(ON) ID 60V 38m 15A G. GATE D. DRAIN S. SOURCE #1 S1 G1 S2 G2ABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITS Drain-Source Voltage VDS 60 V Gate-Source

9.5. Size:295K niko-sem
p3606bd.pdf

P3606BD N-Channel Enhancement Mode NIKO-SEM TO-252 Field Effect Transistor Halogen-Free & Lead-Free DPRODUCT SUMMARY V(BR)DSS RDS(ON) ID 1. GATE G60V 36m 22A 2. DRAIN 3. SOURCE SABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITS Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS 20 V TC = 25

9.6. Size:303K niko-sem
p3606bea.pdf

P3606BEA NIKO-SEM N-Channel Enhancement Mode PDFN 3x3P Field Effect Transistor Halogen-Free & Lead-Free DD D D DPRODUCT SUMMARY V(BR)DSS RDS(ON) ID G60V 36m 16A G. GATE D. DRAIN #1 S S S GS. SOURCE SABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITS Drain-Source Voltage VDS 60 V Gate-Source Volt
