FXN0503D Todos los transistores



FXN0503D MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: FXN0503D
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 95 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 30 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 68 A
   Tjⓘ - Temperatura máxima de unión: 175 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 32 nS
   Cossⓘ - Capacitancia de salida: 236 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.0052 Ohm
   Paquete / Cubierta: TO252


 Búsqueda de reemplazo de FXN0503D MOSFET

   - Selección ⓘ de transistores por parámetros

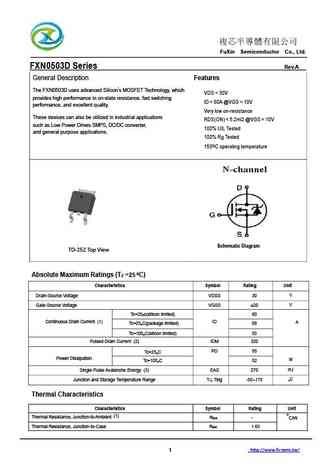

FXN0503D Datasheet (PDF)

 ..1. Size:315K  cn fx-semi
 fxn0503d.pdf pdf_icon

FXN0503D

FuXin Semiconductor Co., Ltd. FXN0503D Series Rev.A General Description Features The FXN0503D uses advanced Silicon s MOSFET Technology, which VDS = 30V provides high performance in on-state resistance, fast switching ID = 80A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industria

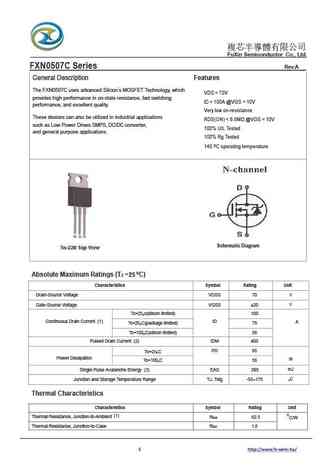

 8.1. Size:874K  cn fx-semi
 fxn0507c.pdf pdf_icon

FXN0503D

FuXin Semiconductor Co., Ltd.FXN0507C Series Rev.AGeneral Description FeaturesThe FXN0507C uses advanced Silicon s MOSFET Technology, whichVDS = 70Vprovides high performance in on-state resistance, fast switchingID = 100A @VGS = 10Vperformance, and excellent quality.Very low on-resistanceThese devices can also be utilized in industrial applica

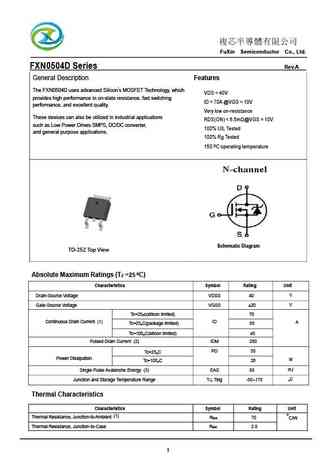

 8.2. Size:958K  cn fx-semi
 fxn0504d.pdf pdf_icon

FXN0503D

FuXin Semiconductor Co., Ltd. FXN0504D Series Rev.A General Description Features The FXN0504D uses advanced Silicon s MOSFET Technology, which VDS = 40V provides high performance in on-state resistance, fast switching ID = 70A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industria
