AP2311AI MOSFET Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: AP2311AI

Tipo de FET: MOSFET

Polaridad de transistor: P

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 1.6 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 12 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 12 V

|Id|ⓘ - Corriente continua de drenaje: 5.8 A

Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 45 nS

Cossⓘ - Capacitancia de salida: 390 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.024 Ohm

Encapsulados: SOT23

 Búsqueda de reemplazo de AP2311AI MOSFET

- Selecciónⓘ de transistores por parámetros



AP2311AI datasheet

 ..1. Size:1157K  cn apm
 ap2311ai.pdf pdf_icon

AP2311AI

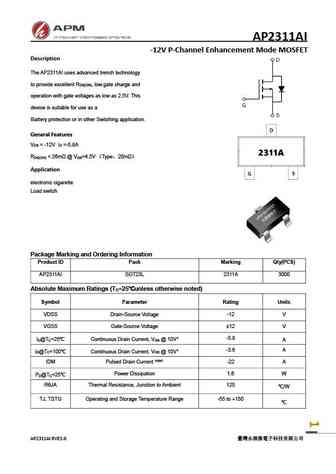

AP2311AI -12V P-Channel Enhancement Mode MOSFET Description The AP2311AI uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -12V I =-5.8A DS D R

 8.1. Size:120K  ape
 ap2311gn.pdf pdf_icon

AP2311AI

AP2311GN RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -60V D Small Package Outline RDS(ON) 250m Surface Mount Device ID - 1.8A S SOT-23 G Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, G low on-resistance and cost-effec

 8.2. Size:125K  ape
 ap2311gn-hf.pdf pdf_icon

AP2311AI

AP2311GN-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -60V D Small Package Outline RDS(ON) 250m Surface Mount Device ID - 1.8A S RoHS Compliant SOT-23 G Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, G low on-resi

 8.3. Size:50K  ape
 ap2311gk-hf.pdf pdf_icon

AP2311AI

AP2311GK-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -60V D Lower Gate Charge RDS(ON) 250m S Fast Switching Characteristic ID - 2.4A D RoHS Compliant & Halogen-Free SOT-223 G Description Advanced Power MOSFETs from APEC
