AGM40P150C MOSFET. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

AGM40P150C datasheet

..1. Size:1189K cn agmsemi
agm40p150c.pdf pdf_icon

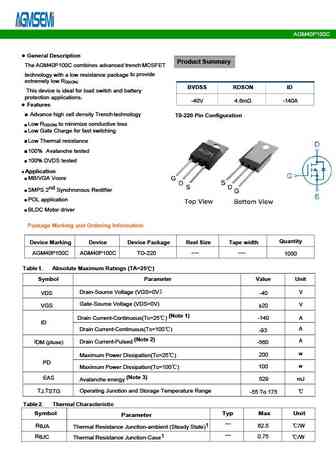

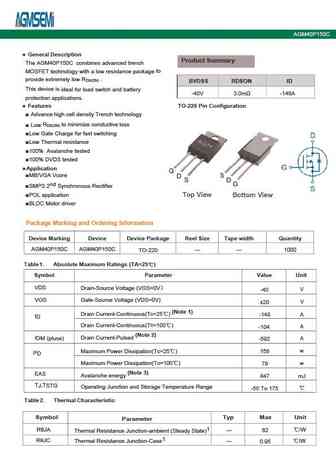

AGM40P150C Table 2. P-Channel Electrical Characteristics (TJ=25 unless otherwisenoted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BVDSS Drain-Source Breakdown Voltage VGS=0V ID=-250 A -40 -- -- V Zero Gate Voltage Drain Current V =-40V,V =0V -1 DS GS I -- -- A DSS Gate-Body Leakage Current V = 40V,V =0V 100 GS DS I -- -- nA GSS V Gate Threshold Voltage V =

7.1. Size:1016K cn agmsemi
agm40p100h.pdf pdf_icon

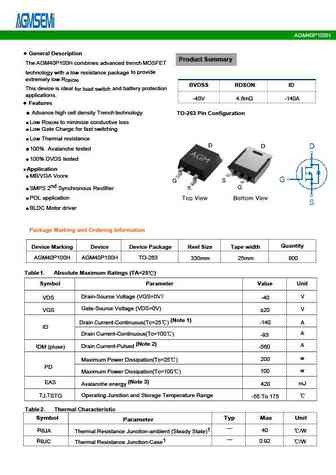

AGM40P100H Table 3. Electrical Characteristics (TJ=25 unless otherwise noted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BVDSS Drain-Source Breakdown Voltage V =0V I =-250 A -40 -- -- V GS D Zero Gate Voltage Drain Current V =-40V,V =0V -- -- -1 A DS GS I DSS Gate-Body Leakage Current V = 20V,V =0V -- -- 100 nA GS DS I GSS VGS(th) Gate Threshold Voltage

7.2. Size:879K cn agmsemi
agm40p13s.pdf pdf_icon

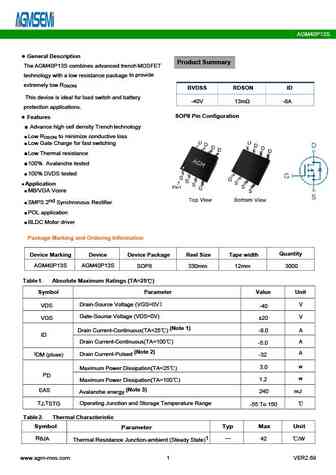

AGM40P13S General Description Product Summary The AGM40P13S combines advanced trench MOSFET to provide technology with a low resistance package extremely low R DS(ON) BVDSS RDSON ID This device is ideal and battery for load switch -40V 13m -8A protection applications. SOP8 Pin Configuration Features Advance high cell density Trench technology Low R to minimize cond

7.3. Size:1241K cn agmsemi
agm40p100a.pdf pdf_icon

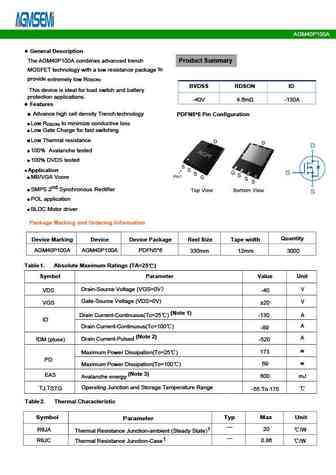

AGM40P100A Typical Electrical And Thermal Characteristics (Curves) Figure 1. Output Characteristics Figure 2. Transfer Characteristics Figure 3. Power Dissipation Figure 4. Drain Current Figure 5. BV vs Junction Temperature Figure 6. R vs Junction Temperature DSS DS(ON) www.agm-mos.com 3 VER2.69 AGM40P100A Figure 7. Gate Charge Waveforms Figure 8. Capacitance Figure 9. Body-
