AS2310A Todos los transistores



AS2310A MOSFET Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: AS2310A

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 1.2 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 60 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 20 V

|Id|ⓘ - Corriente continua de drenaje: 3 A

Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 10 nS

Cossⓘ - Capacitancia de salida: 28 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.08 Ohm

Encapsulados: SOT23

 Búsqueda de reemplazo de AS2310A MOSFET

- Selecciónⓘ de transistores por parámetros



AS2310A datasheet

 ..1. Size:927K  anbon
 as2310a.pdf pdf_icon

AS2310A

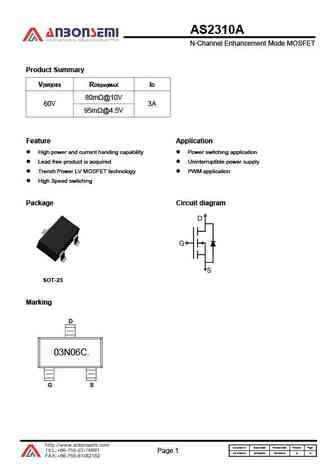

AS2310A N-Channel Enhancement Mode MOSFET Product Summary V R I (BR)DSS DS(on)MAX D 80m @10V 60V 3A 95m @4.5V Feature Application High power and current handing capability Power switching application Lead free product is acquired Uninterruptible power supply Trench Power LV MOSFET technology PWM application High Speed switching Package Circuit diagram

 8.1. Size:594K  anbon
 as2310.pdf pdf_icon

AS2310A

AS2310 N-Channel Enhancement Mode MOSFET Product Summary V(BR)DSS RDS(on)MAX ID 100m @10V 60V 3A 120m @4.5V Feature Application High power and current handing capability Battery Switch Lead free product is acquired DC/DC Converter Package Circuit diagram SOT-23 Marking S10. Document ID Issued Date Revised Date Revision Page. Page 1 AS-3150040 2003/03/08 2018

 9.1. Size:307K  anbon
 as2318.pdf pdf_icon

AS2310A

AS2318 N-Channel Enhancement Mode MOSFET Product Summary V(BR)DSS RDS(on)MAX ID 45m @10V 40V 5A 60m @4.5V Feature Application Advanced trench process technology Load Switch for Portable Devices High density cell design for ultra low on-resistance DC/DC Converter Package Circuit diagram SOT-23 Marking 4005. Document ID Issued Date Revised Date Revision Page. Pa

 9.2. Size:2163K  anbon
 as2312.pdf pdf_icon

AS2310A

AS231 2 N-Channel MOSFET SOT-23 Plastic-Encapsulate MOSFETS Dimensions In Millimeters Dimensions In Inches Symbol Min Max Min Max A 0.900 1.150 0.035 0.045 A1 0.000 0.100 0.000 0.004 A2 0.900 1.050 0.035 0.041 b 0.300 0.500 0.012 0.020 c 0.080 0.150 0.003 0.006 D 2.800 3.000 0.110 0.118 E 1.200 1.400 0.047 0.055 E1 2.250 2.550 0.089 0.100 e 0.
