AO3401F Datasheet. Equivalente

 ..1. Size:1148K  born
 ao3401f.pdf

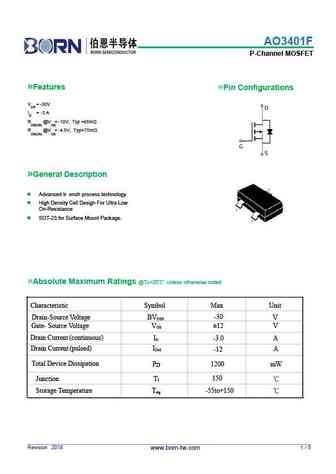

AO3401F P-Channel MOSFET Features Pin Configurations V = -30V DS I D = -3 A R @V = -10V, Typ =65m DS(ON) GS R @V = -4.5V, Typ=75m DS(ON) GS General Description Advanced tr ench process technology High Density Cell Design For Ultra Low On-Resistance SOT-23 for Surface Mount Package. Absolute Maximum Ratings @T =25 unless otherwise noted A Char

 8.1. Size:1439K  htsemi
 ao3401.pdf

AO3401 30V P-Channel Enhancement Mode MOSFET V = -30V DS R , V DS(ON) gs@-10V, I ds@-4.2A

 8.2. Size:1540K  lge
 ao3401.pdf

AO3401 P-Channel 30V(D-S) MOSFET DESCRIPTION D The AO3401 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate G voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications. S GENERAL FEATURES Schematic diagram VDSS RDS(ON) RDS(ON) RDS(ON) ID @ 4.5V (Typ) @ 2.5V (Typ) @ 10V (Typ)

 8.3. Size:497K  aosemi
 ao3401.pdf

AO3401 30V P-Channel MOSFET General Description Product Summary VDS -30V The AO3401 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate ID (at VGS=-10V) -4.0A voltages as low as 2.5V. This device is suitable for use as RDS(ON) (at VGS=-10V)

 8.4. Size:231K  aosemi
 ao3401a.pdf

AO3401A 30V P-Channel MOSFET General Description Product Summary VDS -30V The AO3401A uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation ID (at VGS=-10V) -4.0A gate voltages as low as 2.5V. This device is suitable for RDS(ON) (at VGS=-10V)

 8.5. Size:1476K  shenzhen
 ao3401.pdf

Shenzhen Tuofeng Semiconductor Technology Co., Ltd AO3401 AO3401 P-Channel Enhancement Mode Field Effect Transistor General Description Features The AO3401 uses advanced trench technology to VDS (V) = -30V provide excellent RDS(ON), low gate charge and ID = -4.0 A (VGS = -10V) operation with gate voltages as low as 2.5V. This RDS(ON)

 8.6. Size:771K  blue-rocket-elect
 ao3401.pdf

AO3401 Rev.A Aug.-2016 DATA SHEET / Descriptions SOT23-3 P MOS P- CHANNEL MOSFET in a SOT23-3 Plastic Package. / Features VDS (V) = -30V ID = -4.2 A (VGS = -10V) RDS(ON)

 8.7. Size:1580K  kexin
 ao3401hf.pdf

SMD Type MOSFET P-Channel Enhancement MOSFET AO3401 HF (KO3401 HF) SOT-23-3 Unit mm +0.2 2.9 -0.1 Features +0.1 0.4-0.1 VDS (V) =-30V 3 ID =-4.2 A (VGS =-10V) RDS(ON) 50m (VGS =-10V) RDS(ON) 65m (VGS =-4.5V) 1 2 D +0.02 +0.1 0.15 -0.02 0.95 -0.1 RDS(ON) 120m (VGS =-2.5V) +0.1 1.9 -0.2 G 1. Gate S 2. Source 3. Drain A

 8.8. Size:1562K  kexin
 ao3401-3.pdf

SMD Type MOSFET P-Channel Enhancement MOSFET AO3401 (KO3401) SOT-23-3 Unit mm +0.2 2.9 -0.1 Features +0.1 0.4-0.1 VDS (V) =-30V 3 ID =-4.2 A (VGS =-10V) RDS(ON) 50m (VGS =-10V) RDS(ON) 65m (VGS =-4.5V) 1 2 D +0.02 +0.1 0.15 -0.02 0.95 -0.1 RDS(ON) 120m (VGS =-2.5V) +0.1 1.9 -0.2 G 1. Gate S 2. Source 3. Drain Absolu

 8.9. Size:1535K  kexin
 ao3401 ko3401.pdf

SMD Type MOSFET P-Channel Enhancement MOSFET AO3401 (KO3401) SOT-23 Unit mm 2.9+0.1 -0.1 +0.1 0.4-0.1 Features 3 VDS (V) =-30V ID =-4.2 A (VGS =-10V) RDS(ON) 50m (VGS =-10V) 1 2 +0.1 RDS(ON) 65m (VGS =-4.5V) +0.05 0.95 -0.1 0.1 -0.01 D +0.1 1.9 -0.1 RDS(ON) 120m (VGS =-2.5V) 1. Gate G 2. Source S 3. Drain Absolute M

 8.10. Size:1535K  kexin
 ao3401.pdf

SMD Type MOSFET P-Channel Enhancement MOSFET AO3401 (KO3401) SOT-23 Unit mm 2.9+0.1 -0.1 +0.1 0.4-0.1 Features 3 VDS (V) =-30V ID =-4.2 A (VGS =-10V) RDS(ON) 50m (VGS =-10V) 1 2 +0.1 RDS(ON) 65m (VGS =-4.5V) +0.05 0.95 -0.1 0.1 -0.01 D +0.1 1.9 -0.1 RDS(ON) 120m (VGS =-2.5V) 1. Gate G 2. Source S 3. Drain Absolute M

 8.11. Size:1315K  kexin
 ao3401a.pdf

SMD Type MOSFET P-Channel MOSFET AO3401A (KO3401A) SOT-23 Unit mm +0.1 2.9 -0.1 +0.1 0.4 -0.1 Features 3 VDS (V) =-30V ID =-4 A (VGS =-10V) RDS(ON) 50m (VGS =-10V) 1 2 +0.1 +0.05 0.95-0.1 0.1-0.01 RDS(ON) 60m (VGS =-4.5V) +0.1 1.9-0.1 RDS(ON) 85m (VGS =-2.5V) 1. Gate 2. Source D 3. Drain G S Absolute Maximum Ratings T

 8.12. Size:1320K  kexin
 ao3401a-3.pdf

SMD Type MOSFET P-Channel MOSFET AO3401A (KO3401A) SOT-23-3 Unit mm +0.2 2.9 -0.1 +0.1 0.4-0.1 3 Features VDS (V) =-30V ID =-4 A (VGS =-10V) 1 2 RDS(ON) 50m (VGS =-10V) +0.02 +0.1 0.15 -0.02 0.95 -0.1 +0.1 RDS(ON) 60m (VGS =-4.5V) 1.9 -0.2 RDS(ON) 85m (VGS =-2.5V) 1. Gate 2. Source D 3. Drain G S Absolute Maximum R

 8.13. Size:3338K  umw-ic
 ao3401a.pdf

R UMWpe UMW AO3401A UMW AO3401A M SFET SMD Ty P-Channel Enhancement MOSFET SOT 23 Features VDS (V) =-30V ID =-4.2 A (VGS =-10V) RDS(ON) 55m (VGS =-10V) RDS(ON) 70m (VGS =-4.5V) RDS(ON) 120m (VGS =-2.5V) 1. GATE 2. SOURCE 3. DRAIN D G S Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Drain-Source Voltage V

 8.14. Size:1984K  born
 ao3401a.pdf

AO3401A MOSFET ROHS P-Channel Enhancement-Mode MOSFET SOT-23 - Features Advanced trench process technology High Density Cell Design For Ultra Low On-Resistance MAXIMUM RANTINGS Characteristic Symbol Max Unit -30 Drain-Source Voltage BV V DSS Gate- Source Voltage V V GS +12 Drain Current (continuous) I -4.2 A D Drain Current (pulsed) I A DM -18 Total Device D

 8.15. Size:627K  guangdong hottech
 ao3401.pdf

Plastic-Encapsulate Mosfets AO3401 P-Channel MOSFET FEATURES High dense cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability D 1.Gate 2.Source SOT-23 3.Drain G S MARKING A19T Maximum ratings ( Ta=25 unless otherwise noted) Unit Parameter Symbol Value Drain-Source Voltage VDS -30 V Gate-Source Voltage VGS 12 V Continuous

 8.16. Size:468K  huashuo
 ao3401a.pdf

AO3401A P-Ch 30V Fast Switching MOSFETs Description Product Summary VDS -30 V The AO3401A is the high cell density trenched P- ch MOSFETs, which provides excellent RDSON RDS(ON),typ 54 m and efficiency for most of the small power switching and load switch applications. ID -4.2 A The AO3401A meet the RoHS and Green Product requirement with full function reliability approv

 8.17. Size:1887K  mdd
 ao3401.pdf

AO3401 SOT-23 Plastic-Encapsulate MOSFETS SOT-23 30V P-Channel MOSFET 3 ID Max V(BR)DSS RDS(on)Typ 44m @-10V 1. GATE -4.2A -30V 2. SOURCE 51m @4.5V 1 3. DRAIN 2 FEATURE APPLICATION Load/Power Switching High dense cell design for extremely low RDS(ON) Interfacing Switching Exceptional on-resistance and maximum DC current capability MARKING Equivalen

 8.18. Size:573K  msksemi
 ao3401mi-ms.pdf

www.msksemi.com AO3401MI-MS Semiconductor Compiance FEATURE SOT-23-3 3 High dense cell design for extremely low R . DS(ON) Exceptional on-resistance and maximum DC currentcapability 1. GATE 1 2 APPLICATION 2. SOURCE Load/Power Switching 3. DRAIN Interfacing Switching Equivalent Circuit I V(BR)DSS RDS(on)MAX D 65m @-10V 75m @-4.5V -30 V -4.2A 90m @-2.5V

 8.19. Size:1425K  cn puolop
 ao3401.pdf

AO3401 -30V P-Channel Enhancement Mode MOSFET V = -30V DS R , V DS(ON) gs@-10V, I ds@-4.2A

 8.20. Size:453K  cn shikues
 ao3401.pdf

P-Channel Enhancement Mode MOSFET Channel Enhancement Mode MOSFET Feature SC-59 -30V/-4.2A, RDS(ON) =55m (MAX) @VGS = -10V. = RDS(ON) = 70m (MAX) @VGS = -4.5V. GS RDS(ON) =120m (MAX) @VGS = -2.5V. GS Super High dense cell design for extremely low R Super High dense cell design for extremely low RDS(ON) Reliable and Rugged SC-59 for Surface Mount Package Applications

 8.21. Size:1599K  cn yongyutai
 ao3401.pdf

AO3401 P-Channel 20-V(D-S) MOSFET ID V(BR)DSS RDS(on)MAX SOT-23-3L 90 m @-4.5V -20V A -3 110 m @-2.5V 1. GATE 2. SOURCE 3. DRAIN FEATURE APPLICATION TrenchFET Power MOSFET z z Load Switch for Portable Devices z DC/DC Converter MARKING A19T Equivalent Circuit Maximum ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source V

 8.22. Size:1377K  cn alj
 ao3401.pdf

SHENZHEN LONG JING MICRO-ELECTRONICS CO., LTD. SOT-23 Plastic-Encapsulate MOSFETS AO3401 P-Channel Enhancement Mode Field Effect Transistor Features V (V) = -30V DS = -4.2 A (V = -10V) ID GS R

 8.23. Size:947K  cn twgmc
 ao3401.pdf

SI2305 AO3401 AO3401 AO3401 SOT-23 Plastic-Encapsulate MOSFETS FEATURES

 8.24. Size:867K  cn vbsemi
 ao3401.pdf

AO3401 www.VBsemi.tw P-Channel 30 V (D-S) MOSFET FEATURES PRODUCT SUMMARY TrenchFET Power MOSFET 100 % Rg Tested VDS (V) RDS(on) ( ) Typ. ID (A)a Qg (Typ.) 0.046 at VGS = - 10 V - 5.6 0.049 at VGS = - 6 V - 5 11.4 nC - 30 APPLICATIONS 0.054 at VGS = - 4.5 V -4.5 For Mobile Computing - Load Switch - Notebook Adaptor Switch S TO-236 - DC/DC Converter (SOT-23)

 8.25. Size:866K  cn vbsemi
 ao3401a.pdf

AO3401A www.VBsemi.tw P-Channel 30 V (D-S) MOSFET FEATURES PRODUCT SUMMARY TrenchFET Power MOSFET 100 % Rg Tested VDS (V) RDS(on) ( ) Typ. ID (A)a Qg (Typ.) 0.046 at VGS = - 10 V - 5.6 0.049 at VGS = - 6 V - 5 11.4 nC - 30 APPLICATIONS 0.054 at VGS = - 4.5 V -4.5 For Mobile Computing - Load Switch - Notebook Adaptor Switch S TO-236 - DC/DC Converter (SOT-23)

 8.26. Size:967K  cn minos
 ao3401s.pdf

Description The AO3401S combines advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltage as low as 2.5V. This device is suitable for use as a load switch or other general applications. Features VDS= -30V, ID= -4.2A Schematic Diagram RDS(ON)typ. =45m @VDS=-10V RDS(ON)typ. =51m @VDS=-4.5V RDS(ON)typ. =65m @VDS=-2.5V Low gate
