CS48N75A Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: CS48N75A  📄📄

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 75 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 64 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 20 V

|Id|ⓘ - Corriente continua de drenaje: 65 A

Tjⓘ - Temperatura máxima de unión: 175 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 24 nS

Cossⓘ - Capacitancia de salida: 252 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.0082 Ohm

Encapsulados: TO220

  📄📄 Copiar

 Búsqueda de reemplazo de CS48N75A MOSFET

- Selecciónⓘ de transistores por parámetros



CS48N75A datasheet

 ..1. Size:561K  cass
 cs48n75a.pdf pdf_icon

CS48N75A

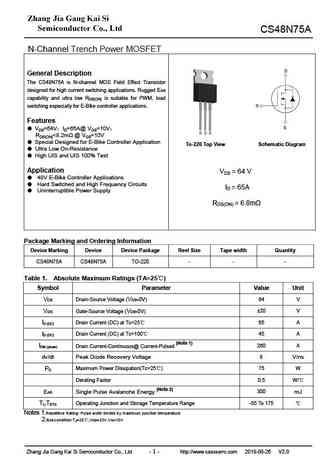

CS48N75A N-Channel Trench Power MOSFET General Description The CS48N75A is N-channel MOS Field Effect Transistor designed for high current switching applications. Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching especially for E-Bike controller applications. Features VDS=64V ID=65A@ VGS=10V RDS(ON)

 7.1. Size:561K  cass
 cs48n75.pdf pdf_icon

CS48N75A

CS48N75 N-Channel Trench Power MOSFET General Description The CS48N75 is N-channel MOS Field Effect Transistor designed for high current switching applications. Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching especially for E-Bike controller applications. Features VDS=70V ID=68A@ VGS=10V RDS(ON)

 7.2. Size:998K  thinkisemi
 cs48n75.pdf pdf_icon

CS48N75A

CS48N75 Pb CS48N75 Pb Free Plating Product 70V,68A N-Channel Trench Process Power MOSFET General Description The is N-channel MOS Field Effect Transistor CS48N75 designed for high current switching applications. Rugged EAS CS48N75 (TO-220 HeatSink) capability and ultra low RDS(ON) is suitable for PWM, load switching especially for E-Bike controller applications. Features DS

 8.1. Size:564K  cass
 cs48n78.pdf pdf_icon

CS48N75A

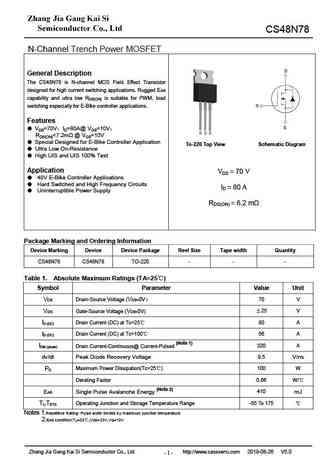

CS48N78 N-Channel Trench Power MOSFET General Description The CS48N78 is N-channel MOS Field Effect Transistor designed for high current switching applications. Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching especially for E-Bike controller applications. Features VDS=70V ID=80A@ VGS=10V RDS(ON)
