BC856; BC857; BC85865 V, 100 mA PNP general-purpose transistorsRev. 7 16 April 2018 Product data sheet1 Product profile1.1 General descriptionPNP general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device(SMD) plastic package.Table 1. Product overviewType number Package NPN complementNexperia JEDECBC856 SOT23 TO-236AB BC846BC856A BC846ABC856B BC84

DISCRETE SEMICONDUCTORS DATA SHEETBC856; BC857; BC858PNP general purpose transistorsProduct data sheet 2004 Jan 16Supersedes data of 2003 Apr 09NXP Semiconductors Product data sheetPNP general purpose transistors BC856; BC857; BC858FEATURES PINNING Low current (max. 100 mA)PIN DESCRIPTION Low voltage (max. 65 V).1 base2 emitterAPPLICATIONS3 collector G

BC856A-BC858C PNP SMALL SIGNAL TRANSISTOR IN SOT23 Features Mechanical Data Ideally Suited for Automatic Insertion Case: SOT23 Complementary NPN Types: BC846 BC848 Case Material: Molded Plastic, Green Molding Compound For Switching and AF Amplifier Applications UL Flammability Classification Rating 94V-0 Totally Lead-Free & Fully RoHS Compliant (Not

BC856...-BC860...PNP Silicon AF Transistor For AF input stages and driver applications High current gain Low collector-emitter saturation voltage Low noise between 30 hz and 15 kHz Complementary types: BC846...-BC850... (NPN) Pb-free (RoHS compliant) package1) Qualified according AEC Q1011Pb-containing package may be available upon special request20

M C CBC856ARMicro Commercial Components Micro Commercial ComponentsTHRU130 W Cochran St, Unit BSimi Valley, CA 93065BC858CTel:818-701-4933FeaturesPNP Small Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Epoxy meets UL 94 V-0 flammability ratingSignal TransistorMoisure Sensitivity Level 1 Ideally Suited for Au

BC856A SERIESTaiwan SemiconductorSmall Signal Product200mW, PNP Small Signal TransistorFEATURES - Epitaxial planar die construction- Surface device type mounting- Moisture sensitivity level 1- Matte Tin(Sn) lead finish with Nickel(Ni) underplate- Pb free and RoHS compliant- Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date codeMECHANICA

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO.,LTD SOT-23 Plastic-Encapsulate Transistors BC856A, B TRANSISTOR (PNP) BC857A, B,C SOT-23 BC858A, B,C FEATURES 1. BASE 2. EMITTER Ideally suited for automatic insertion 3. COLLECTOR For Switching and AF Amplifier Applications MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Colle

BC856A,B BC857A, B,C BC858A, B,C TRANSISTOR (PNP) FEATURES Ideally suited for automatic insertion For Switching and AF Amplifier Applications SOT-23 1. BASE MAXIMUM RATINGS (TA=25 unless otherwise noted) 2. EMITTER 3. COLLECTOR Symbol Parameter Value Units VCBO Collector-Base Voltage BC856 -80 V BC857 -50 BC858 -30 VCEO Collector-Emitter Voltage B

BC856 SERIESPNP GENERAL PURPOSE TRANSISTORSPOWER 330 mWattVOLTAGE 30/45/65 VoltFEATURES0.120(3.04) General Purpose Amplifier Applications0.110(2.80) Collector Current IC = -100mA Complimentary (PNP) Devices : BC846/BC847/BC848/BC849Series Lead free in compliance with EU RoHS 2011/65/EU directive0.056(1.40)0.047(1.20) Green molding compound as per IEC61

RUMW UMW BC857SOT-23 Plastic-Encapsulate Transistors BC856A, B TRANSISTOR (PNP) BC857A, B,C SOT-23 BC858A, B,C FEATURES 1. BASE 2. EMITTER Ideally suited for automatic insertion 3. COLLECTOR For Switching and AF Amplifier Applications MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Collector-Base Voltage BC856 -80 V B

BC856A/B-BC857A/B/CBC858A/B/C-BC859B/CGeneral Purpose TransistorPNP Silicon Package outlineFeatures Moisture sensitivity level: 1SOT-23 ESD rating human body model: >4000 V,machine model: >400 V Epitaxial plana chip construction Ideal for medium power application and switching Capable of 225mW power dissipation. Lead-free parts for green partner, ex

BC856-8SOT-23 Plastic-Encapsulate Transistors TRANSISTOR( P NP )Features SOT- 23 Ideally suited for automatic insertion For Switching and AF Amplifier Applications Marking: BC856A=3A;BC856B=3B; BC857A=3E;BC857B=3F;BC857C=3G;BC858A=3J;BC858B=3K;BC858C=3L; CB EItem Symbol Unit Conditions ValueBC856Collector-Base Voltage -80 -50 BC857 V VC

www.msksemi.comBC856/57/58ABCSemiconductor CompianceSemiconductor Compiance TRANSISTOR (PNP)1. BASE 2. EMITTER FEATURES 3. COLLECTOR Ideally suited for automatic insertion SOT-23 For Switching and AF Amplifier Applications DEVICE MARKING P/N MARK P/N MARK P/N MARKBC856A 3A BC856B 3BBC857A 3E BC857B 3F BC857C 3GBC858A 3J BC858B 3K BC858C 3LMAXIMUM RATINGS (T

DATA SHEET BC856A/B,BC857A/B/C,BC858A/B/C PNP GENERAL PURPOSE TRANSISTOR VOLTAGE -30 ~ -65 V CURRENT -100 mA FEATURES PNP SILICON EPITAXIAL PLANAR TRANSISTOR FOR SWITCHING AND AMPLIFIER APPLICATIONS COLLECTOR CURRENT IC = -100mA LEAD FREE AND HALOGEN-FREE MECHANICAL DATA CASE: SOT-23 TERMINALS: SOLDERABLE PER MIL-STD-202G, METHOD 208 APPROX. WEIGHT: 0.008

Jingdao Microelectronics co.LTD BC856 BC857 BC858 BC856 BC857 BC858SOT-23PNP TRANSISTOR3FEATURES Ideally suited for automatic insertion For Switching and AF Amplifier Applications 1MAXIMUM RATINGS (Ta=25 unless otherwise noted)Parameter Symbol Value Unit2 BC856 -801.BASECollectorBase VoltageV BC8

BC856/BC857/BC858 TRANSI STOR (PNP)MARKING: Equivalent Circuit:SOT-231.BASE2.EMITTER3.COLLECTORFEATURES: Ideaiiy suited for automatic insertion For switching and AF amplifier applicationsMAXIMUM RATINGS (Ta=25 unless otherwise noted)Parameter Symbol Value UnitCollector-Base Voltage -80 BC856 VCBO -50 V BC857 -30 BC858Collector-Emitter Voltage -6

BC856/BC857/BC858 TRANSISTOR(PNP)SOT-23 SOT-23 SOT-23 Plastic-Encapsulate Transistors Features Complementary to BC846/BC847/BC848 Power Dissipation of 200mW Ideally suited for automatic insertion For switching and AF amplifier applicationsMarking: Mechanical DataBC856A=3A BC856B=3B Small Outline Plastic PackageBC857A=

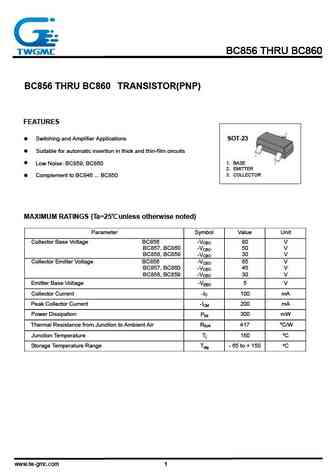

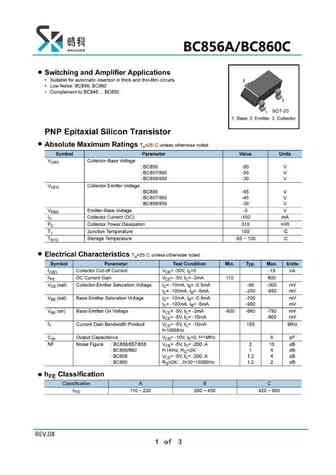

BC856 THRU BC860BC856 THRU BC860BC856 THRU BC860BC8 56 THRU BC8 60 TRANSISTOR(PNP)FEATURESSwitching and Amplifier Applications SOT-23 Suitable for automatic insertion in thick and thin-film circuits1BASE Low Noise: BC859, BC8602EMITTER 3COLLECTOR Complement to BC846 ... BC850MAXIMUM RATINGS (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Collec

RoHS RoHSCOMPLIANT COMPLIANTBC856/BC857/BC858 PNP Transistor Features Epoxy meets UL-94 V-0 flammability ratingMoisture Sensitivity Level 1 High Conductance Surface Mount Package Ideally Suited for Automatic Insertion Mechanical Data Package: SOT-23 Molding compound meets UL 94 V-0 flammability rating,RoHS-compliant, halogen-free Terminals: T

BC856-BC858BC856A, B TRANSISTOR (PNP)BC857A, B,CSOT-23 BC858A, B,C FEATURES 1. BASE 2. EMITTER Ideally suited for automatic insertion 3. COLLECTOR For Switching and AF Amplifier Applications MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Collector-Base Voltage BC856 -80V BC857 -50BC858 -30VCEO Collector-Emitter Voltage B

BC856/BC857/BC858 BC856/BC857/BC858 SOT-23 Plastic-Encapsulate Transistors (PNP) General description SOT-23 Plastic-Encapsulate Transistors (PNP) FEATURES Complementary to BC846/BC847/BC848 Power Dissipation of 200mW Ideally suited for automatic insertion For switching and AF amplifier applications SOT-23 Small Outline Plastic Package DEVICE MARKING COD

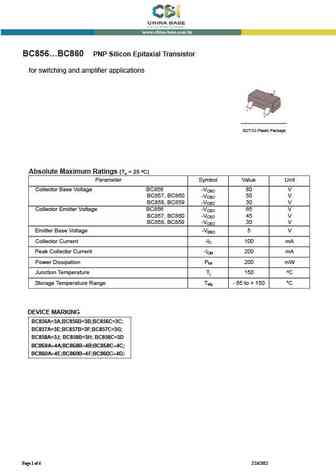

BC856BC860 PNP Silicon Epitaxial Transistor for switching and amplifier applications1.BASE 2.EMITTER 3.COLLECTORSOT-23 Plastic Package OAbsolute Maximum Ratings (Ta = 25 C) Parameter Symbol Value Unit Collector Base Voltage BC856 -VCBO 80 V BC857, BC860 -VCBO 50 V BC858, BC859 -VCBO 30 V Collector Emitter Voltage BC856 -VCEO 65 V BC857, BC860 -VCEO 45 V BC858, BC859 -

ANHUI FOSAN SEMICONDUCTOR TECHNOLOGY CO., LTDBC856/BC857/BC858FEATURES PNP General Purpose TransistorMAXIMUM RATINGS Characteristic Symbol GM856A,B GM857A,B,C GM858A,B,C Unit (BC856A,B) (BC857A,B,C) (BC858A,B,C) Collector-Emitter VoltageV -65 -45 -30 VdcCEOC

Plastic-Encapsulate Transistors(PNP)FEATURESBC856A/B (PNP)BC857A/B/CIdeally suited for automatic insertionBC858A/B/C (PNP)For Switching and AF Amplifier ApplicationsMarkingBC856A BC856B BC857A BC857B3A 3B 3E 3FBC857C BC858A BC858B BC858C1. BASE3G 3J 3K 3L2. EMITTER SOT-233. COLLECTOMAXIMUM RATINGS (TA=25 unless otherwise noted)Parameter Symbol Value UnitBC8

BC856BS65 V, 100 mA PNP/PNP general-purpose transistorRev. 01 11 August 2009 Product data sheet1. Product profile1.1 General descriptionPNP/PNP general-purpose transistor pair in a very small Surface-Mounted Device (SMD)plastic package.Table 1. Product overviewType number Package NPN/NPN NPN/PNPcomplement complementNXP JEITABC856BS SOT363 SC-88 BC846BS BC846BPN1.2 Fe

BC856BM60 V, 100 mA PNP general-purpose transistor19 August 2015 Product data sheet1. General descriptionPNP general-purpose transistor in a leadless ultra small DFN1006-3 (SOT883) Surface-Mounted Device (SMD) plastic package.NPN complement: BC846BM.2. Features and benefits Leadless ultra small SMD plastic package Power dissipation comparable to SOT23 AEC-Q101 quali

DISCRETE SEMICONDUCTORS DATA SHEETdbook, halfpageM3D102BC856W; BC857W; BC858WPNP general purpose transistorsProduct data sheet 2002 Feb 04Supersedes data of 1999 Apr 12NXP Semiconductors Product data sheetBC856W; BC857W; PNP general purpose transistorsBC858WFEATURES PINNING Low current (max. 100 mA)PIN DESCRIPTION Low voltage (max. 65 V).1 base2 emitter

BC856BS65 V, 100 mA PNP/PNP general-purpose transistorRev. 01 11 August 2009 Product data sheet1. Product profile1.1 General descriptionPNP/PNP general-purpose transistor pair in a very small Surface-Mounted Device (SMD)plastic package.Table 1. Product overviewType number Package NPN/NPN NPN/PNPcomplement complementNexperia JEITABC856BS SOT363 SC-88 BC846BS BC846BPN1

BC856W SERIESBC857W SERIESwww.centralsemi.comSURFACE MOUNTDESCRIPTION:PNP SILICON TRANSISTORThe CENTRAL SEMICONDUCTOR BC856W and BC857W Series types are PNP Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a SUPERminiTM surface mount package, designed for general purpose switching and amplifier applications. MARKING CODE: SEE MARKING CODE

BC856AW THRU BC858CWFeatures Halogen free available upon request by adding suffix "-HF" Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating PNP Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHSGeneral Purpose Compliant. See Ordering Information)TransistorsMaximum Ratings @ 25C Unless Otherwise Specified Operating Junction Tempera

BC856BSFeatures Muti-Chip Transistor Halogen Free Available Upon Request By Adding Suffix "-HF"PNP Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability RatingPlastic-Encapsulate Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS TransistorsCompliant. See Ordering Information)Maximum Ratings @ 25C Unless Otherwise SpecifiedSOT-363

BC856ALT1G SeriesGeneral PurposeTransistorsPNP SiliconFeatureswww.onsemi.com S and NSV Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements; AEC-Q101COLLECTORQualified and PPAP Capable3 These Devices are Pb-Free, Halogen Free/BFR Free and are RoHSCompliant1BASEMAXIMUM RATINGS (TA = 25C unless otherwise noted)2

BC856BDW1T1G,SBC856BDW1T1G Series,BC857BDW1T1G,SBC857BDW1T1G Series,BC858CDW1T1G Serieswww.onsemi.comDual General PurposeTransistorsPNP DualsSOT-363/SC-88These transistors are designed for general purpose amplifierCASE 419BSTYLE 1applications. They are housed in the SOT-363/SC-88 which isdesigned for low power surface mount applications.(3) (2) (1)Features S

BC856BDW1T1G,SBC856BDW1T1G Series,BC857BDW1T1G,SBC857BDW1T1G Series,BC858CDW1T1G Serieswww.onsemi.comDual General PurposeTransistorsPNP DualsSOT-363/SC-88These transistors are designed for general purpose amplifierCASE 419BSTYLE 1applications. They are housed in the SOT-363/SC-88 which isdesigned for low power surface mount applications.(3) (2) (1)Features S

BC856B, BC857B, BC858AGeneral PurposeTransistorsPNP SiliconThese transistors are designed for general purpose amplifierwww.onsemi.comapplications. They are housed in the SC-70/SOT-323 which isdesigned for low power surface mount applications.COLLECTOR3Features S and NSV Prefix for Automotive and Other Applications Requiring1Unique Site and Control Change Requirement

EMT1DXV6Dual General PurposeTransistorPNP DualThis transistor is designed for general purpose amplifierhttp://onsemi.comapplications. It is housed in the SOT-563 which is designed for lowpower surface mount applications.(3) (2) (1)Features Lead-Free Solder Plating Low VCE(SAT), t0.5 VQ1 Q2 NSV Prefix for Automotive and Other Applications RequiringUnique Site

BC856BM3, NSVBC856BM3General Purpose TransistorPNP SiliconThis transistor is designed for general purpose amplifierapplications. It is housed in the SOT-723 which is designed for lowpower surface mount applications.http://onsemi.comFeaturesCOLLECTOR NSV Prefix for Automotive and Other Applications Requiring3Unique Site and Control Change Requirements; AEC-Q101Qualifie

BC856BDW1T1G,SBC856BDW1T1G Series,BC857BDW1T1G,SBC857BDW1T1G Series,BC858CDW1T1G SeriesPreferred Deviceshttp://onsemi.comDual General PurposeTransistorsPNP DualsSOT-363/SC-88CASE 419BSTYLE 1These transistors are designed for general purpose amplifierapplications. They are housed in the SOT-363/SC-88 which is(3) (2) (1)designed for low power surface mount applicat

BC856BDW1T1G,SBC856BDW1T1G Series,BC857BDW1T1G,SBC857BDW1T1G Series,BC858CDW1T1G SeriesPreferred Deviceshttp://onsemi.comDual General PurposeTransistorsPNP DualsSOT-363/SC-88CASE 419BSTYLE 1These transistors are designed for general purpose amplifierapplications. They are housed in the SOT-363/SC-88 which is(3) (2) (1)designed for low power surface mount applicat

BC856B, BC857B, BC858AGeneral PurposeTransistorsPNP SiliconThese transistors are designed for general purpose amplifierwww.onsemi.comapplications. They are housed in the SC-70/SOT-323 which isdesigned for low power surface mount applications.COLLECTOR3Features S and NSV Prefix for Automotive and Other Applications Requiring1Unique Site and Control Change Requirement

BC856ALT1G SeriesGeneral PurposeTransistorsPNP SiliconFeatureswww.onsemi.com S and NSV Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements; AEC-Q101COLLECTORQualified and PPAP Capable3 These Devices are Pb-Free, Halogen Free/BFR Free and are RoHSCompliant1BASEMAXIMUM RATINGS (TA = 25C unless otherwise noted)2

BC856BWT1 Series,BC857BWT1 Series,BC858AWT1 SeriesGeneral PurposeTransistorshttp://onsemi.comPNP SiliconCOLLECTOR3These transistors are designed for general purpose amplifierapplications. They are housed in the SC--70/SOT--323 which isdesigned for low power surface mount applications. 1BASEFeatures These Devices are Pb--Free, Halogen Free/BFR Free and are RoHS2

BC856B, BC857B, BC858AGeneral PurposeTransistorsPNP SiliconThese transistors are designed for general purpose amplifierwww.onsemi.comapplications. They are housed in the SC-70/SOT-323 which isdesigned for low power surface mount applications.COLLECTOR3Features S and NSV Prefix for Automotive and Other Applications Requiring1Unique Site and Control Change Requirement

BC856BDW1T1G,SBC856BDW1T1G Series,BC857BDW1T1G,SBC857BDW1T1G Series,BC858CDW1T1G SeriesPreferred Deviceshttp://onsemi.comDual General PurposeTransistorsPNP DualsSOT-363/SC-88CASE 419BSTYLE 1These transistors are designed for general purpose amplifierapplications. They are housed in the SOT-363/SC-88 which is(3) (2) (1)designed for low power surface mount applicat

BC856BM3T5GPreferred DevicesGeneral Purpose TransistorPNP SiliconThis transistor is designed for general purpose amplifierapplications. It is housed in the SOT-723 which is designed for lowpower surface mount applications.http://onsemi.com This is a Pb-Free DeviceCOLLECTORMAXIMUM RATINGS3Rating Symbol Value Unit1BASECollector-Emitter Voltage VCEO -65 VCollecto

BC856BDW1T1G,SBC856BDW1T1G Series,BC857BDW1T1G,SBC857BDW1T1G Series,BC858CDW1T1G SeriesPreferred Deviceshttp://onsemi.comDual General PurposeTransistorsPNP DualsSOT-363/SC-88CASE 419BSTYLE 1These transistors are designed for general purpose amplifierapplications. They are housed in the SOT-363/SC-88 which is(3) (2) (1)designed for low power surface mount applicat

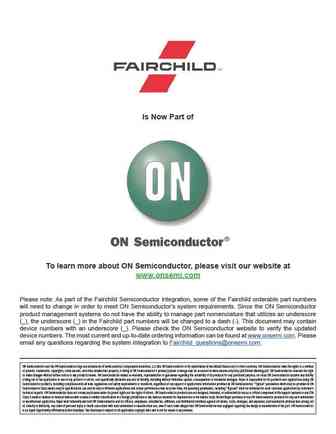

Is Now Part ofTo learn more about ON Semiconductor, please visit our website at www.onsemi.comPlease note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductors system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur

BC856BDW1T1G,BC857BDW1T1G Series,BC858CDW1T1G SeriesPreferred DevicesDual General PurposeTransistorshttp://onsemi.comPNP Duals(3) (2) (1)These transistors are designed for general purpose amplifierapplications. They are housed in the SOT-363/SC-88 which isdesigned for low power surface mount applications.Q1 Q2Features These Devices are Pb-Free, Halogen Free/BFR Fr

BC856BDW1T1G,SBC856BDW1T1G Series,BC857BDW1T1G,SBC857BDW1T1G Series,BC858CDW1T1G Serieswww.onsemi.comDual General PurposeTransistorsPNP DualsSOT-363/SC-88These transistors are designed for general purpose amplifierCASE 419BSTYLE 1applications. They are housed in the SOT-363/SC-88 which isdesigned for low power surface mount applications.(3) (2) (1)Features S

BC856ALT1G Series,SBC856ALT1G SeriesGeneral PurposeTransistorsPNP Siliconhttp://onsemi.comFeatures S and NSV Prefix for Automotive and Other Applications RequiringCOLLECTORUnique Site and Control Change Requirements; AEC-Q1013Qualified and PPAP Capable1 These Devices are Pb-Free, Halogen Free/BFR Free and are RoHSBASECompliant2EMITTER3MAXIMUM RATINGS

BC856BDW SeriesPNP Dual General Purpose Transistors2 13P b Lead(Pb)-Free65412345 6PNP+PNPSOT-363(SC-88)Maximum RatingsRating Symbol BC856 BC857 BC858 Unit65 45 30Collector-Emitter Voltage VCEOV80 50 30Collector-Base Voltage VCBOV5.0 5.0 5.0Emitter-Base Voltage VEBOVCollector Current-Continuous IC 100 100100 mAThermal CharacteristicsChara

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsLBC857CLT1GPNP Silicon SeriesS-LBC857CLT1G Moisture Sensitivity Level: 1 Series ESD Rating Human Body Model: >4000 VESD Rating Machine Model: >400 V We declare that the material of product compliance with 3RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site a

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsPNP Silicon Moisture Sensitivity Level: 1 ESD Rating Human Body Model: >4000 VLBC857CLT1GESD Rating Machine Model: >400 VS-LBC857CLT1G We declare that the material of product compliance with SeriesRoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Siteand Control Ch

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsPNP Silicon Moisture Sensitivity Level: 1LBC857CLT1G ESD Rating Human Body Model: >4000 VS-LBC857CLT1GESD Rating Machine Model: >400 V Series We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site3and Control

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsPNP Silicon Moisture Sensitivity Level: 1 ESD Rating Human Body Model: >4000 VLBC857CLT1GESD Rating Machine Model: >400 VS-LBC857CLT1G We declare that the material of product compliance with SeriesRoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Siteand Control Ch

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsLBC857CLT1GPNP Silicon SeriesS-LBC857CLT1G Moisture Sensitivity Level: 1 Series ESD Rating Human Body Model: >4000 VESD Rating Machine Model: >400 V We declare that the material of product compliance with 3RoHS requirements. S- Prefix for Automotive and Other Applications Requiring 1Unique Sit

LESHAN RADIO COMPANY, LTD.Dual General PurposeLBC85** DW1T1GTransistorsS-LBC85** DW1T1GThese transistors are designed for general purpose amplifierapplications. They are housed in the SOT363/SC88 which isdesigned for low power surface mount applications.654We declare that the material of product compliance with RoHS requirements.S- Prefix for Automotive and Other A

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsLBC856AWT1G, BWT1GLBC857AWT1G, BWT1GPNP SiliconThese transistors are designed for general purposeCWT1Gamplifier applications. They are housed in the SOT323/LBC858AWT1G, BWT1GSC70 which is designed for low power surface mountCWT1Gapplications.S-LBC856AWT1G, BWT1GFeaturesWe declare that the material of product

LESHAN RADIO COMPANY, LTD.Dual General PurposeLBC85** DW1T1GTransistorsS-LBC85** DW1T1G65These transistors are designed for general purpose amplifier4applications. They are housed in the SOT363/SC88 which isdesigned for low power surface mount applications.1We declare that the material of product compliance with RoHS requirements.23S- Prefix for Automotive an

LESHAN RADIO COMPANY, LTD.Dual General PurposeLBC85** DW1T1GTransistorsS-LBC85** DW1T1GThese transistors are designed for general purpose amplifierapplications. They are housed in the SOT363/SC88 which isdesigned for low power surface mount applications.654We declare that the material of product compliance with RoHS requirements.S- Prefix for Automotive and Other A

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsLBC856AWT1G, BWT1GLBC857AWT1G, BWT1GPNP SiliconThese transistors are designed for general purposeCWT1Gamplifier applications. They are housed in the SOT323/LBC858AWT1G, BWT1GSC70 which is designed for low power surface mountCWT1Gapplications.S-LBC856AWT1G, BWT1GFeaturesWe declare that the material of product

LBC856BLT1GS-LBC856BLT1GGeneral Purpose Transistors PNP Silicon1. FEATURESMoisture Sensitivity Level: 1SOT23(TO-236)ESD Rating Human Body Model: >4000 V Machine Model: >400 VWe declare that the material of product compliance with3COLLECTOR RoHS requirements and Halogen Free.S- prefix for automotive and other applications requiring1unique si

SMD Type TransistorsPNP TransistorsBC856BDW ~ BC858CDW(KC856BDW ~ KC858CDW) Features Collector Current Capability IC=-0.1A Collector Emitter Voltage VCEO=-65V/-45V/-30V2 1345 6 Absolute Maximum Ratings Ta = 25BC857 BC858Parameter Symbol BC856BDW UnitBDW/CDW BDW/CDW Collector - Base Voltage VCBO -80 -50 -30 Collector - Emitter Voltage VCEO -65 -45

SMD Type TransistorsPNP TransistorsBC856BS (KC856BS) Features Low collector capacitance Low collector-emitter saturation voltage Closely matched current gain6 5 4 Reduces number of components and board spaceTR2TR11 2 3 Absolute Maximum Ratings Ta = 25Parameter Symbol Rating Unit Collector - Base Voltage VCBO -80 Collector - Emitter Voltage

BC856AW ~ BC859CWPNP GENERAL PURPOSE TRANSISTORS30/45/65 Volts POWER 250 mWattsVOLTAGEFEATURES General purpose amplifier applications PNP epitaxial silicon, planar design Collector current IC = 100mA Complimentary (NPN) Devices : BC846AW/BC847AW/BC848AW/BC849BW Series Lead free in comply with EU RoHS 2011/65/EU directives Green molding compound as per IEC

BC856BSPNP GENERAL PURPOSE DUAL TRANSISTORSVOLTAGE POWER 150 mWatt65 Volt FEATURES General purpose amplifier applications Collector current Ic = 100mA Lead free in compliance with EU RoHS 2011/65/EU directive Green molding compound as per IEC61249 Std. . (Halogen Free)MECHANICAL DATA Case: SOT-363, Plastic Terminals: Solderable per MIL-STD-750, Method 20

Small Signal TransistorBC856AW-G Thru. BC858CW-G (PNP)RoHS DeviceFeatures -Ideally suited for automatic insertion -For Switching and AF Amplifier ApplicationsSOT-323 -Power dissipationPCM: 0.15W (@TA=25C)0.087 (2.20)0.079 (2.00) -Collector current3ICM: -0.1A -Collector-base voltage0.053(1.35)0.045(1.15)VCBO: BC856W= -80VBC857W= -50V1 20.006 (0.15)BC85

BC856W-BC858WPlastic-Encapsulate TransistorsTRANSISTOR (PNP) FEATURES SOT-323 Ideally suited for automatic insertion For Switching and AF Amplifier Applications1. BASE 2. EMITTER3. COLLECTORMAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value Unit Collector-Base Voltage BC856W -80VCBO V BC857W -50BC858W -30Collector-Emitter Voltage BC8

RoHS RoHSCOMPLIANT COMPLIANTBC856AW THRU BC858CW PNP Transistor Features Epoxy meets UL-94 V-0 flammability ratingHalogen free available upon request by adding suffix HF Moisture Sensitivity Level 1 High Conductance Surface Mount Package Ideally Suited for Automatic Insertion Mechanical Data Package: SOT-323 Molding compound meets UL 94 V-

RoHS RoHSCOMPLIANT COMPLIANTBC856AWQ THRU BC858CWQ PNP General Purpose Amplifier Features Epoxy meets UL-94 V-0 flammability rating and halogen free Moisture Sensitivity Level 1 Part no. with suffix Q means AEC-Q101 qualified Applications PNP General purpose switching and amplification Mechanical Data Case: SOT-323 Terminals: Tin plated

RoHS RoHSCOMPLIANT COMPLIANTBC856AW THRU BC858CW PNP Transistor Features Epoxy meets UL-94 V-0 flammability ratingMoisture Sensitivity Level 1 High Conductance Surface Mount Package Ideally Suited for Automatic Insertion Mechanical Data Package: SOT-323 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free Termina

RoHS COMPLIANT BC856Q THRU BC858Q PNP General Purpose Amplifier Features Epoxy meets UL-94 V-0 flammability rating and halogen free Moisture Sensitivity Level 1 High Conductance Part no. with suffix Q means AEC-Q101 qualified Applications General purpose switching and amplification Mechanical Data : SOT-23 Case Terminals: Tin plated
