KSP55 . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: KSP55
Material: Si
Polaridad de transistor: PNP
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 0.625 W
Tensión colector-base (Vcb): 60 V
Tensión colector-emisor (Vce): 60 V
Tensión emisor-base (Veb): 4 V
Corriente del colector DC máxima (Ic): 0.5 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Transición de frecuencia (ft): 50 MHz
Ganancia de corriente contínua (hfe): 50
Paquete / Cubierta: TO92
Búsqueda de reemplazo de transistor bipolar KSP55
KSP55 Datasheet (PDF)
ksp55 ksp56.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
KSP55/56Amplifier Transistor Collector-Emitter Voltage: VCEO=KSP55: 60VKSP56: 80V Collector Power Dissipation: PC (max) =625mW Complement to KSP05/06TO-9211. Emitter 2. Base 3. CollectorPNP Epitaxial Silicon TransistorAbsolute Maximum Ratings Ta=25C unless otherwise noted Symbol Parameter Value UnitsVCBO Collector-Base Voltage : KSP55 -60 V: KSP56 -80 VV
ksp55.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)

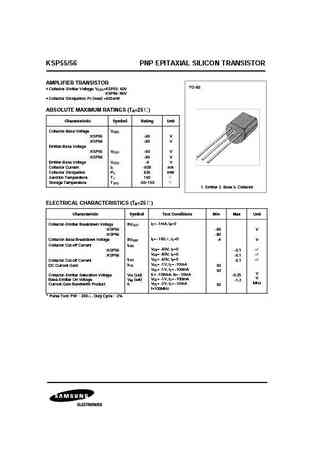

KSP55/56 PNP EPITAXIAL SILICON TRANSISTORAMPLIFIER TRANSISTORTO-92 Collector-Emitter Voltage: VCEO=KSP55: 60VKSP56: 80V Collector Dissipation: PC (max) =625mWABSOLUTE MAXIMUM RATINGS (T =25 )A Characteristic Symbol Rating UnitCollector-Base Voltage VCBO:KSP55 -60 V:KSP56 -80 VEmitter-Base Voltage:KSP55 VCEO -60 V:KSP56 -80 VEmitter-Base Voltage VCEO -4 VCol
ksp55 ksp56.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
Is Now Part ofTo learn more about ON Semiconductor, please visit our website at www.onsemi.comPlease note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductors system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur
