MJF6107 . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: MJF6107
Material: Si
Polaridad de transistor: PNP
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 34 W
Tensión colector-base (Vcb): 80 V
Tensión colector-emisor (Vce): 70 V
Tensión emisor-base (Veb): 5 V
Corriente del colector DC máxima (Ic): 7 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Transición de frecuencia (ft): 4 MHz
Capacitancia de salida (Cc): 250 pF
Ganancia de corriente contínua (hfe): 30
Paquete / Cubierta: TO220F
Búsqueda de reemplazo de transistor bipolar MJF6107

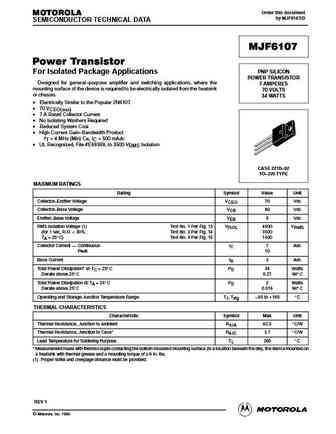

MJF6107 Datasheet (PDF)
mjf6107r.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
Order this documentMOTOROLAby MJF6107/DSEMICONDUCTOR TECHNICAL DATAMJF6107Power TransistorFor Isolated Package Applications PNP SILICONPOWER TRANSISTORDesigned for generalpurpose amplifier and switching applications, where the7 AMPERESmounting surface of the device is required to be electrically isolated from the heatsink70 VOLTSor chassis.34 WATTS Electrically
