ZX5T949G . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: ZX5T949G
Código: X5T949
Material: Si
Polaridad de transistor: PNP
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 3 W
Tensión colector-emisor (Vce): 30 V
Corriente del colector DC máxima (Ic): 5.5 A
CARACTERÍSTICAS ELÉCTRICAS
Transición de frecuencia (ft): 11 MHz
Ganancia de corriente contínua (hfe): 100
Paquete / Cubierta: SOT223
Búsqueda de reemplazo de transistor bipolar ZX5T949G

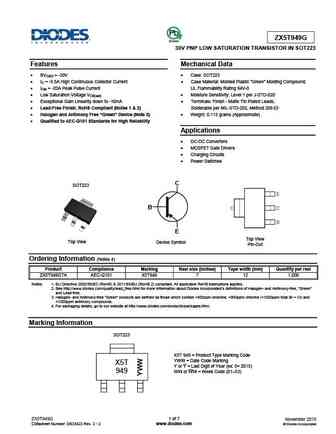

ZX5T949G Datasheet (PDF)
zx5t949g.pdf
ZX5T949G Green30V PNP LOW SATURATION TRANSISTOR IN SOT223 Features Mechanical Data BVCEO > -30V Case: SOT223 IC = -5.5A High Continuous Collector Current Case Material: Molded Plastic Green Molding Compound; ICM = -20A Peak Pulse Current UL Flammability Rating 94V-0 Low Saturation Voltage VCE(sat) Moisture Sensitivity: Level 1 per J-STD-020
zx5t955g.pdf
A Product Line of Diodes Incorporated Green ZX5T955G 140V PNP MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223 Features Mechanical Data BVCEO > -140V Case: SOT223 IC = -4A High Continuous Collector Current Case Material: Molded Plastic. Green molding Compound; ICM = -10A Peak Pulse Current UL Flammability Rating 94V-0 Low Saturation Voltage
zx5t953g.pdf
A Product Line ofDiodes IncorporatedGreenZX5T953G 100V PNP MEDIUM POWER TRANSISTOR IN SOT223 Features Mechanical Data BVCEO > -100V Case: SOT223 IC = -5A High Continuous Collector Current Case Material: Molded Plastic. Green Molding Compound; ICM = -10A Peak Pulse Current UL Flammability Rating 94V-0 Low Saturation Voltage VCE(sat)
zx5t955z.pdf
ZX5T955Z.140V PNP Low saturation medium power transistor in SOT89SummaryBVCEO = -140V : RSAT = 85m ; IC = -3ADescriptionPackaged in the SOT89 outline this new 5th generation low saturation 140VPNP transistor offers low on state losses making it ideal for use in DC-DCcircuits, line switching and various driving and power management functions.Features 3 amps continuous curr
zx5t951g.pdf
A Product Line of Diodes Incorporated GreenZX5T951G 60V PNP MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223 Features Mechanical Data BVCEO > -60V Case: SOT223 IC = -5.5A High Continuous Collector Current Case Material: Molded Plastic. Green Molding Compound. ICM = -15A Peak Pulse Current UL Flammability Rating 94V-0 Low Saturation Voltage
