PZTA06 Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: PZTA06

Material: Si

Polaridad de transistor: NPN

ESPECIFICACIONES MÁXIMAS

Disipación total del dispositivo (Pc): 1 W

Tensión colector-base (Vcb): 80 V

Tensión colector-emisor (Vce): 80 V

Tensión emisor-base (Veb): 4 V

Corriente del colector DC máxima (Ic): 0.5 A

Temperatura operativa máxima (Tj): 150 °C

CARACTERÍSTICAS ELÉCTRICAS

Transición de frecuencia (fT): 100 MHz

Ganancia de corriente contínua (hFE): 100

Encapsulados: SOT223

 Búsqueda de reemplazo de PZTA06

- Selecciónⓘ de transistores por parámetros



PZTA06 datasheet

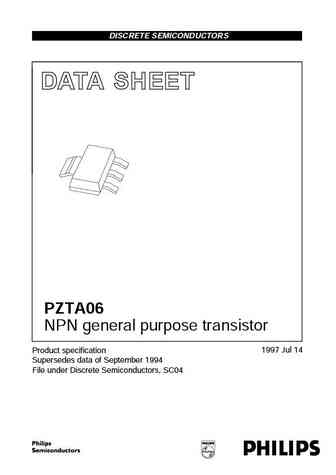

 ..1. Size:49K  philips
 pzta06 cnv 2.pdf pdf_icon

PZTA06

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D087 PZTA06 NPN general purpose transistor 1997 Jul 14 Product specification Supersedes data of September 1994 File under Discrete Semiconductors, SC04 Philips Semiconductors Product specification NPN general purpose transistor PZTA06 FEATURES PINNING High current (max. 500 mA) PIN DESCRIPTION Low voltage (max. 80 V).

 ..2. Size:203K  fairchild semi
 mpsa06 mmbta06 pzta06.pdf pdf_icon

PZTA06

March 2011 MPSA06 / MMBTA06 / PZTA06 NPN General Purpose Amplifier Features This device is designed for general purpose amplifier applications at collector currents to 300mA. Sourced from Process 33. MPSA06 MMBTA06 PZTA06 C C E E C B TO-92 SOT-23 SOT-223 B Mark 1G EBC Absolute Maximum Ratings * Ta = 25 C unless otherwise noted Symbol Parameter Value Units VCEO Colle

 ..3. Size:398K  onsemi
 mpsa06 mmbta06 pzta06.pdf pdf_icon

PZTA06

Is Now Part of To learn more about ON Semiconductor, please visit our website at www.onsemi.com Please note As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur

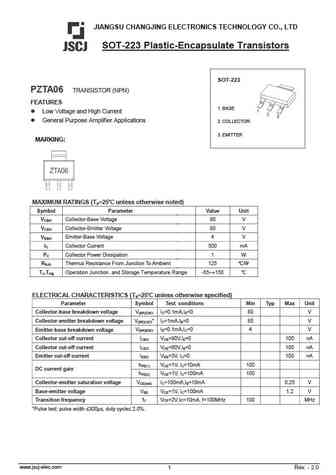

 ..4. Size:742K  jiangsu
 pzta06.pdf pdf_icon

PZTA06

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-223 Plastic-Encapsulate Transistors SOT-223 PZTA06 TRANSISTOR (NPN) FEATURES 1. BASE Low Voltage and High Current General Purpose Amplifier Applications 2. COLLECTOR 3. EMITTER MARKING MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value Unit V Collector-Base Voltage 80 V CBO V Collector-Emi

MOSTRAR MÁS
