CMBT918 . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: CMBT918
Código: 3B
Material: Si
Polaridad de transistor: NPN
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 0.225 W
Tensión colector-base (Vcb): 30 V
Tensión colector-emisor (Vce): 15 V
Tensión emisor-base (Veb): 3 V
Corriente del colector DC máxima (Ic): 0.35 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Transición de frecuencia (ft): 600 MHz
Capacitancia de salida (Cc): 1.7 pF
Ganancia de corriente contínua (hfe): 20
Paquete / Cubierta: SOT-23
Búsqueda de reemplazo de transistor bipolar CMBT918

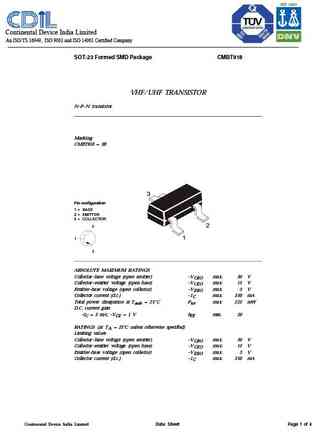

CMBT918 Datasheet (PDF)
cmbt918.pdf
Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanySOT-23 Formed SMD PackageCMBT918VHF/UHF TRANSISTORNPN transistorMarkingCMBT918 = 3BPin configuration1 = BASE2 = EMITTER3 = COLLECTOR312ABSOLUTE MAXIMUM RATINGSCollectorbase voltage (open emitter) VCBO max. 30 VCollectoremitter voltage (open base) VCEO max.
