SUT121G . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: SUT121G
Material: Si
Polaridad de transistor: NPN
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 1 W
Tensión colector-base (Vcb): 120 V
Tensión colector-emisor (Vce): 120 V
Tensión emisor-base (Veb): 6 V
Corriente del colector DC máxima (Ic): 1 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Transición de frecuencia (ft): 170 MHz
Capacitancia de salida (Cc): 10 pF
Ganancia de corriente contínua (hfe): 200
Paquete / Cubierta: TESOP-8
Búsqueda de reemplazo de transistor bipolar SUT121G

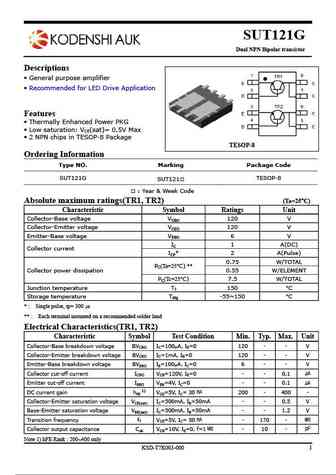

SUT121G Datasheet (PDF)
sut121g.pdf
SUT121GDual NPN Bipolar transistorDescriptions General purpose amplifier Recommended for LED Drive Application Features Thermally Enhanced Power PKG Low saturation: VCE(sat)= 0.5V Max 2 NPN chips in TESOP-8 Package TESOP-8 Ordering Information Type NO. Marking Package Code SUT121G TESOP-8 SUT121 : Year & Week Code Absolute maximum ratin
