DRA3152Z Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: DRA3152Z
Código: L0
Material: Si
Polaridad de transistor: Pre-Biased-PNP
Resistencia de Entrada Base R1 = 0.51 kOhm
Resistencia Base-Emisor R2 = 5.1 kOhm
Ratio típica de resistencia R1/R2 = 0.1
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 0.1 W
Tensión colector-base (Vcb): 50 V
Tensión colector-emisor (Vce): 50 V
Corriente del colector DC máxima (Ic): 0.1 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Ganancia de corriente contínua (hFE): 20
Encapsulados: SSSMINI3-F2-B
Búsqueda de reemplazo de DRA3152Z
- Selecciónⓘ de transistores por parámetros
DRA3152Z datasheet
..1. Size:416K panasonic
dra3152z.pdf

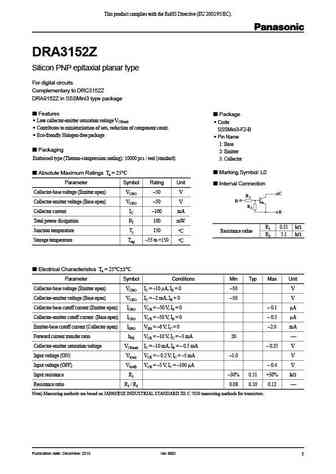

This product complies with the RoHS Directive (EU 2002/95/EC). DRA3152Z Silicon PNP epitaxial planar type For digital circuits Complementary to DRC3152Z DRA9152Z in SSSMini3 type package Features Package Low collector-emitter saturation voltage VCE(sat) Code Contributes to miniaturization of sets, reduction of component count. SSSMini3-F2-B Eco-friendly Halog
