DRC9152Z . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: DRC9152Z
Código: N0
Material: Si
Polaridad de transistor: Pre-Biased-NPN
Resistencia de Entrada Base R1 = 0.51 kOhm
Resistencia Base-Emisor R2 = 5.1 kOhm
Ratio típica de resistencia R1/R2 = 0.1
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 0.125 W
Tensión colector-base (Vcb): 50 V
Tensión colector-emisor (Vce): 50 V
Corriente del colector DC máxima (Ic): 0.1 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Ganancia de corriente contínua (hfe): 20
Paquete / Cubierta: SSMINI3-F3-B
Búsqueda de reemplazo de transistor bipolar DRC9152Z
DRC9152Z Datasheet (PDF)
drc9152z.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)

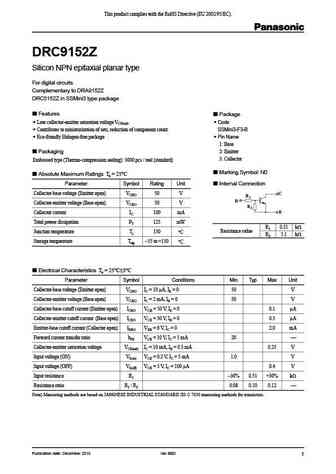

This product complies with the RoHS Directive (EU 2002/95/EC).DRC9152ZSilicon NPN epitaxial planar typeFor digital circuitsComplementary to DRA9152ZDRC5152Z in SSMini3 type package Features Package Low collector-emitter saturation voltage VCE(sat) Code Contributes to miniaturization of sets, reduction of component count. SSMini3-F3-B Eco-friendly Halogen-
