UN5115 Todos los transistores



UN5115 . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: UN5115

Código: 6E

Material: Si

Polaridad de transistor: Pre-Biased-PNP

Resistencia de Entrada Base R1 = 10 kOhm

ESPECIFICACIONES MÁXIMAS

Disipación total del dispositivo (Pc): 0.15 W

Tensión colector-base (Vcb): 50 V

Tensión colector-emisor (Vce): 50 V

Corriente del colector DC máxima (Ic): 0.1 A

Temperatura operativa máxima (Tj): 150 °C

CARACTERÍSTICAS ELÉCTRICAS

Producto de corriente -- ganancia — ancho de banda (ft): 80 MHz

Ganancia de corriente contínua (hfe): 160

Empaquetado / Estuche: SC70

Búsqueda de reemplazo de transistor bipolar UN5115



UN5115 Datasheet (PDF)

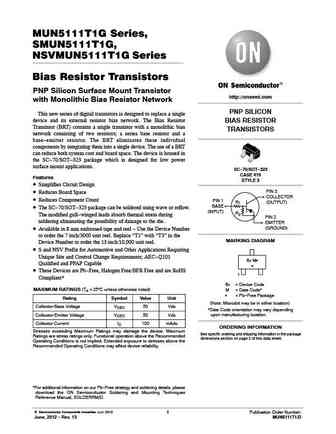

1.1. mun5111t1g mun5112t1g mun5113t1g mun5114t1g mun5115t1g mun5116t1g mun5130t1g mun5131t1g mun5132t1g mun5133t1g mun5134t1g mun5135t1g mun5136t1g mun5137t1g.pdf Size:171K _upd

UN5115
UN5115

MUN5111T1G Series, SMUN5111T1G, NSVMUN5111T1G Series Bias Resistor Transistors PNP Silicon Surface Mount Transistor http://onsemi.com with Monolithic Bias Resistor Network PNP SILICON This new series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor BIAS RESISTOR Transistor (BRT) contains a single transistor with a

1.2. mun5111dw1t1g mun5112dw1t1g mun5113dw1t1g mun5114dw1t1g mun5115dw1t1g mun5116dw1t1g mun5130dw1t1g mun5131dw1t1g.pdf Size:198K _upd

UN5115
UN5115

MUN5111DW1T1G Series, SMUN5111DW1T1G Series Dual Bias Resistor Transistors PNP Silicon Surface Mount Transistors http://onsemi.com with Monolithic Bias Resistor Network The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. These digital transistors are designed to

 1.3. mun5111t1g mun5112t1g mun5113t1g mun5114t1g mun5115t1g mun5116t1g mun5130t1g mun5131t1g mun5132t1g mun5133t1g mun5134t1g mun5135t1g mun5136t1g mun5137t1g.pdf Size:171K _onsemi

UN5115
UN5115

MUN5111T1G Series, SMUN5111T1G, NSVMUN5111T1G Series Bias Resistor Transistors PNP Silicon Surface Mount Transistor http://onsemi.com with Monolithic Bias Resistor Network PNP SILICON This new series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor BIAS RESISTOR Transistor (BRT) contains a single transistor with a

1.4. mun5111dw1t1g mun5112dw1t1g mun5113dw1t1g mun5114dw1t1g mun5115dw1t1g mun5116dw1t1g mun5130dw1t1g mun5131dw1t1g.pdf Size:198K _onsemi

UN5115
UN5115

MUN5111DW1T1G Series, SMUN5111DW1T1G Series Dual Bias Resistor Transistors PNP Silicon Surface Mount Transistors http://onsemi.com with Monolithic Bias Resistor Network The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. These digital transistors are designed to

 1.5. lmun5111dw1t1g lmun5112dw1t1g lmun5113dw1t1g lmun5114dw1t1g lmun5115dw1t1g lmun5116dw1t1g lmun5130dw1t1g lmun5131dw1t1g lmun5132dw1t1g.pdf Size:918K _lrc

UN5115
UN5115

LESHAN RADIO COMPANY, LTD. Dual Bias Resistor Transistors PNP Silicon Surface Mount Transistors LMUN5111DW1T1G Series with Monolithic Bias Resistor Network The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias S-LMUN5111DW1T1G network consisting of two resistors; a series base resistor and a base–emitter resistor. These Series digital transistors are

1.6. lmun5111t1g lmun5112t1g lmun5113t1g lmun5114t1g lmun5115t1g lmun5116t1g lmun5130t1g lmun5131t1g lmun5132t1g lmun5133t1g lmun5134t1g lmun5135t1g lmun5136t1g lmun5137t1g.pdf Size:171K _lrc

UN5115
