BC849BW-AU . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: BC849BW-AU
Código: 49B
Material: Si
Polaridad de transistor: NPN
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 0.25 W
Tensión colector-base (Vcb): 30 V
Tensión colector-emisor (Vce): 30 V
Tensión emisor-base (Veb): 5 V
Corriente del colector DC máxima (Ic): 0.1 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Capacitancia de salida (Cc): 4.5(max) pF
Ganancia de corriente contínua (hfe): 200
Paquete / Cubierta: SOT323
Búsqueda de reemplazo de transistor bipolar BC849BW-AU
BC849BW-AU Datasheet (PDF)

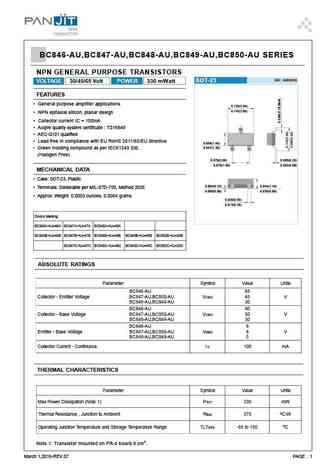

bc846aw-au bc847aw-au bc848aw-au bc846bw-au bc847bw-au bc848bw-au bc849bw-au bc850bw-au bc847cw-au bc848cw-au bc849cw-au bc850cw-au.pdf

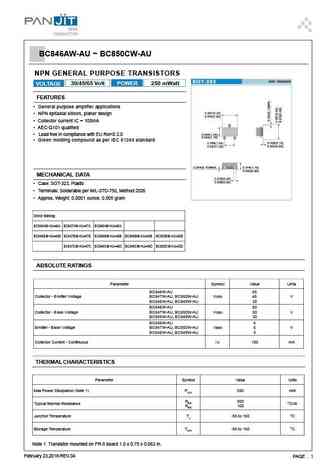

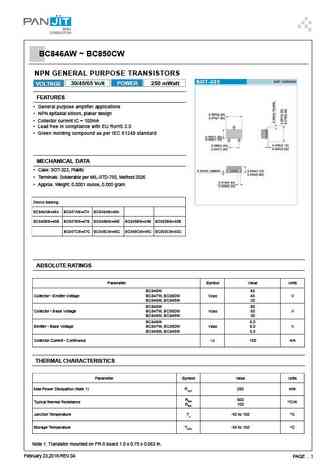

BC846AW-AU ~ BC850CW-AUNPN GENERAL PURPOSE TRANSISTORS30/45/65 Volt POWER 250 mWattVOLTAGEFEATURES General purpose amplifier applications NPN epitaxial silicon, planar design Collector current IC = 100mA AEC-Q101 qualified Lead free in compliance with EU RoHS 2.0 Green molding compound as per IEC 61249 standardMECHANICAL DATA Case: SOT-323, Plastic
bc849bw bc849cw.pdf
Important notice Dear Customer, On 7 February 2017 the former NXP Standard Product business became a new company with the tradename Nexperia. Nexperia is an industry leading supplier of Discrete, Logic and PowerMOS semiconductors with its focus on the automotive, industrial, computing, consumer and wearable application markets In data sheets and application notes which still contain
bc846aw bc846bw bc847aw bc847bw bc847cw bc848aw bc848bw bc848cw bc849bw bc849cw bc850bw bc850cw.pdf
BC846AW ~ BC850CWNPN GENERAL PURPOSE TRANSISTORS30/45/65 Volt POWERVOLTAGE 250 mWattFEATURES General purpose amplifier applications NPN epitaxial silicon, planar design Collector current IC = 100mA Lead free in compliance with EU RoHS 2.0 Green molding compound as per IEC 61249 standardMECHANICAL DATA Case: SOT-323, Plastic Terminals: Solderable per
bc849b bc849c bc850b bc850c.pdf
Important notice Dear Customer, On 7 February 2017 the former NXP Standard Product business became a new company with the tradename Nexperia. Nexperia is an industry leading supplier of Discrete, Logic and PowerMOS semiconductors with its focus on the automotive, industrial, computing, consumer and wearable application markets In data sheets and application notes which still contain
bc849bf.pdf
BC846...-BC850...NPN Silicon AF Transistors For AF input stages and driver applications High current gain Low collector-emitter saturation voltage Low noise between 30 Hz and 15 kHz Complementary types: BC856...-BC860...(PNP) Pb-free (RoHS compliant) package1) Qualified according AEC Q1011Pb-containing package may be available upon special request20
bc847a bc847b bc847bl3 bc847bw bc847c bc847cw bc848a bc848b bc848bl3 bc848bw bc848c bc848cw bc849b bc849c bc849cw bc850b bc850bw bc850c bc850cw.pdf

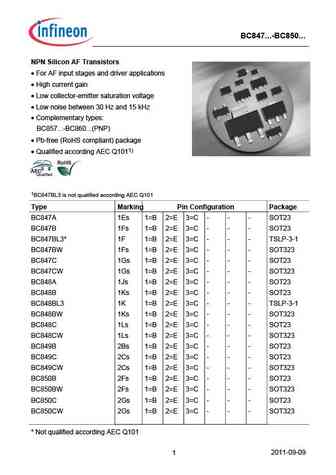

BC847...-BC850...NPN Silicon AF Transistors For AF input stages and driver applications High current gain Low collector-emitter saturation voltage Low noise between 30 Hz and 15 kHz Complementary types: BC857...-BC860...(PNP) Pb-free (RoHS compliant) package Qualified according AEC Q1011)1BC847BL3 is not qualified according AEC Q101Type Marking Pin
bc846a bc846b bc846bw bc847a bc847b bc847bf bc847bl3 bc847bt bc847bw bc847c bc847cw bc848a bc848aw bc848b bc848bf bc848bl3 bc848bw bc848c bc848cw bc849b bc849bf bc849c bc849cw bc850b bf850bf bc850bw bc850c bc8.p
bc846a bc846b bc847a bc847b bc847c bc848a bc848b bc848c bc849b bc849c.pdf
M C CTMMicro Commercial Components BC846A thru BC849CStatic Characteristic h I FE C 10 3000COMMON COMMON EMITTER EMITTER V CE= 5V T a =25 1000 8 T =100 a 20uA18uA6 16uAT =25 14uA a 12uA4 100 10uA 8uA 6uA 24uA I B=2uA 0 100 1 2 3 4 5 6 7 1 10 100 COLLECTOR CURRENT IC (mA) COLLECTOREMITTER VOLTAGE V CE (V) V I
bc850clt1g bc849blt1g.pdf

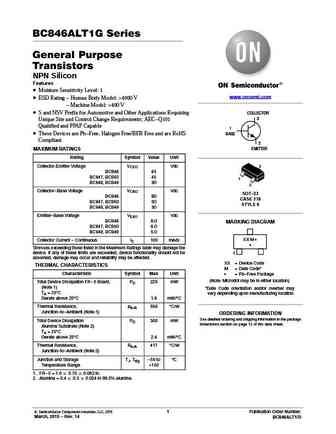

BC846ALT1 SeriesBC846, BC847 and BC848 are Preferred DevicesGeneral PurposeTransistorsNPN SiliconFeatureshttp://onsemi.com Moisture Sensitivity Level: 1 ESD Rating - Human Body Model: >4000 VCOLLECTOR3ESD Rating - Machine Model: >400 V Pb-Free Packages are Available1BASEMAXIMUM RATINGS2Rating Symbol Value UnitEMITTERCollector-Emitter Voltage VCEO V
bc846alt1g bc846blt1g bc847alt1g bc847blt1g nsvbc847blt3g bc847clt1g bc848alt1g bc848blt1g bc848clt1g bc849blt1g bc849clt1g bc850blt1g nsvbc850blt1g bc850clt1g nsvbc850clt1g.pdf

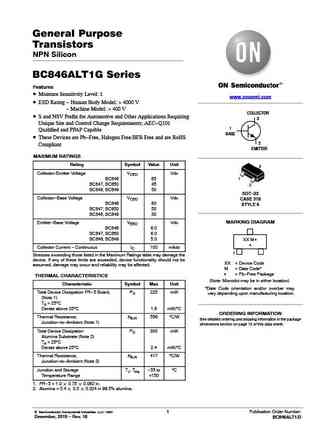

BC846ALT1G SeriesGeneral PurposeTransistorsNPN SiliconFeatures Moisture Sensitivity Level: 1www.onsemi.com ESD Rating - Human Body Model: >4000 VESD Rating - Machine Model: >400 V S and NSV Prefix for Automotive and Other Applications Requiring COLLECTOR3Unique Site and Control Change Requirements; AEC-Q101Qualified and PPAP Capable1 These Devices are Pb-
bc846alt1g bc846blt1g bc846clt1g bc847alt1g bc847blt1g bc847clt1g bc848alt1g bc848blt1g bc848clt1g bc849blt1g bc849clt1g bc850blt1g bc850clt1g.pdf

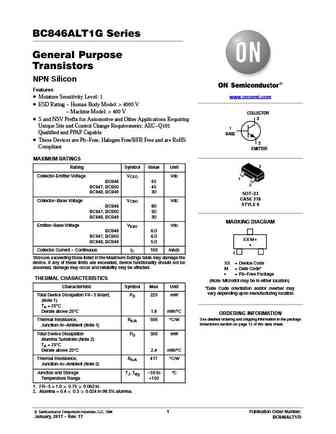

General PurposeTransistorsNPN SiliconBC846ALT1G SeriesFeatures Moisture Sensitivity Level: 1www.onsemi.com ESD Rating - Human Body Model: > 4000 VESD Rating - Machine Model: > 400 VCOLLECTOR S and NSV Prefix for Automotive and Other Applications Requiring3Unique Site and Control Change Requirements; AEC-Q1011Qualified and PPAP CapableBASE These Device
bc846alt1g bc846blt1g bc847alt1g bc847blt1g bc847clt1g bc848alt1g bc848blt1g bc848clt1g bc849blt1g bc849clt1g bc850blt1g bc850clt1g.pdf
BC846ALT1G SeriesGeneral PurposeTransistorsNPN SiliconFeatureswww.onsemi.com Moisture Sensitivity Level: 1 ESD Rating - Human Body Model: > 4000 VESD Rating - Machine Model: > 400 VCOLLECTOR3 S and NSV Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements; AEC-Q1011Qualified and PPAP CapableBASE These Device
bc846alt1g bc846blt1g bc847alt1g bc847blt1g nsvbc847blt3g bc847clt1g bc848alt1g bc848blt1g bc848clt1g bc849blt1g nsvbc849blt1g bc849clt1g bc849clt3g bc850blt1g nsvbc850blt1g bc850clt1g nsvbc850clt1g.pdf
BC846ALT1G SeriesGeneral PurposeTransistorsNPN SiliconFeatureswww.onsemi.com Moisture Sensitivity Level: 1 ESD Rating - Human Body Model: > 4000 VESD Rating - Machine Model: > 400 VCOLLECTOR3 S and NSV Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements; AEC-Q1011Qualified and PPAP CapableBASE These Device
bc846a bc846b bc846c bc847a bc847b bc847c bc848a bc848b bc848c bc849a bc849b bc849c bc850a bc850b bc850c.pdf

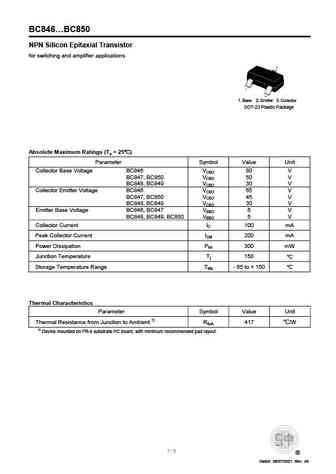

BC846BC850 NPN Silicon Epitaxial Transistor for switching and amplifier applications SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25) Parameter Symbol Value Unit Collector Base Voltage BC846 VCBO 80 V BC847, BC850 VCBO 50 V BC848, BC849 VCBO 30 V Collector Emitter Voltage BC846 VCEO 65 V BC847, BC850 VCEO 45 V BC848, BC849 VCEO 30 V Emitter Base Voltage BC
lbc848blt1g lbc848blt3g lbc848clt1g lbc848clt3g lbc849blt1g lbc849blt3g lbc849clt1g lbc849clt3g lbc850blt1g lbc850blt3g lbc850clt1g lbc850clt3g.pdf

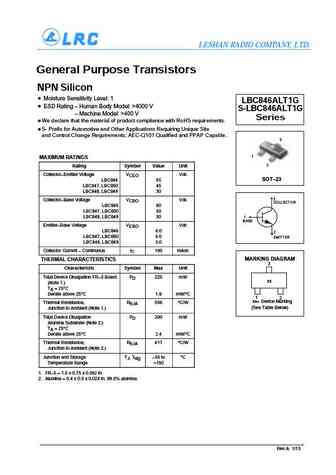

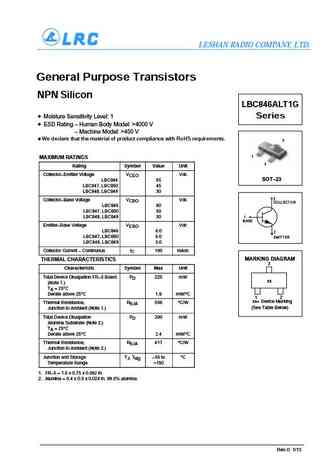

LESHAN RADIO COMPANY, LTD.General Purpose TransistorsNPN SiliconLBC846ALT1G Moisture Sensitivity Level: 1 Series ESD Rating Human Body Model: >4000 VESD Rating Machine Model: >400 V We declare that the material of product compliance with RoHS requirements.31MAXIMUM RATINGS2Rating Symbol Value UnitCollectorEmitter Voltage VCEO VdcSOT23LBC846 6
lbc848blt3g lbc848clt1g lbc848clt3g lbc849blt1g lbc849blt3g lbc849clt1g lbc849clt3g lbc850blt1g lbc850blt3g lbc850clt1g lbc850clt3g lbc848blt1g.pdf
LESHAN RADIO COMPANY, LTD.General Purpose TransistorsNPN Silicon Moisture Sensitivity Level: 1 LBC846ALT1GS-LBC846ALT1G ESD Rating Human Body Model: >4000 VESD Rating Machine Model: >400 V Series We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site 3and Control C
lbc847clt3g lbc848alt1g lbc848alt3g lbc848blt1g lbc848blt3g lbc848clt1g lbc848clt3g lbc849blt1g lbc849blt3g.pdf
LESHAN RADIO COMPANY, LTD.General Purpose TransistorsNPN Silicon Moisture Sensitivity Level: 1 LBC846ALT1GS-LBC846ALT1G ESD Rating Human Body Model: >4000 VESD Rating Machine Model: >400 V Series We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Siteand Control Chang
lbc846alt1g lbc846blt1g lbc847alt1g lbc847blt1g lbc847clt1g lbc848alt1g lbc848blt1g lbc848clt1g lbc849blt1g lbc849clt1g lbc850blt1g lbc850clt1g.pdf
LESHAN RADIO COMPANY, LTD.General Purpose TransistorsNPN Silicon Moisture Sensitivity Level: 1LBC846ALT1G ESD Rating Human Body Model: >4000 VS-LBC846ALT1GESD Rating Machine Model: >400 V Series We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Siteand Control Chan
bc846a-au bc847a-au bc848a-au bc846b-au bc847b-au bc848b-au bc849b-au bc850b-au bc847c-au bc848c-au bc849c-au bc850c-au.pdf
BC846-AU,BC847-AU,BC848-AU,BC849-AU,BC850-AU SERIESNPN GENERAL PURPOSE TRANSISTORSVOLTAGE 30/45/65 Volt POWER 330 mWattFEATURES General purpose amplifier applications0.120(3.04)0.110(2.80) NPN epitaxial silicon, planar design Collector current IC = 100mA Acqire quality system certificate : TS16949 AEC-Q101 qualified Lead free in compliance with EU RoHS 20
bc846a bc847a bc848a bc846b bc847b bc848b bc849b bc850b bc847c bc848c bc849c bc850c.pdf
BC846,BC847,BC848,BC849,BC850 SERIESNPN GENERAL PURPOSE TRANSISTORSVOLTAGE 30/45/65 Volt POWER 330 mWattFEATURES0.120(3.04) General purpose amplifier applications0.110(2.80) NPN epitaxial silicon, planar design Collector current IC = 100mA Lead free in compliance with EU RoHS 2011/65/EU directive Green molding compound as per IEC61249 Std. .0.056(1.40) (Ha
bc849b bc850b bc849c bc850c.pdf
BC849-BC850NPN Transistors321.BaseFeatures2.EmitterLow current (max. 100 mA)1 3.CollectorLow voltage (max. 45 V). Simplified outline(SOT-23)Absolute Maximum Ratings Ta = 25Parameter Symbol Rating Unit30 Vcollector-base voltage VCBO50 V30 Vcollector-emitter voltage VCEO45 Vemitter-base voltage VEBO 5Vcollector current (DC) IC 100 mApeak collector curr
bc849b bc849c bc850b bc850c.pdf
BC849--BC850NPN General Purpose TransistorsNPN General Purpose Transistors BC849, BC850 Features Low current (max. 100 mA) Low voltage (max. 45 V). REV.08 1 of 2BC849--BC850Electrical Characteristics Ta = 25 *1 VBEsat decreases by about 1.7 mV/K with increasing temperature.decreases by about 1.7 mV/K with increasing temperature. *2 VBE decreases by about 2 mV/K wi
bc846a bc846b bc846c bc847a bc847b bc847c bc848a bc848b bc848c bc849a bc849b bc849c bc850a bc850b bc850c.pdf

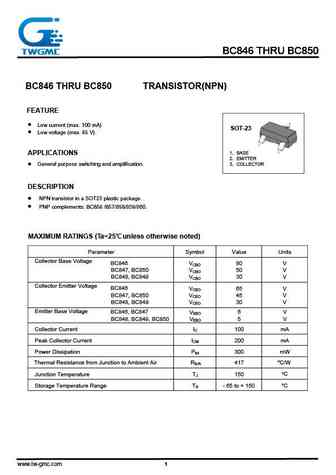

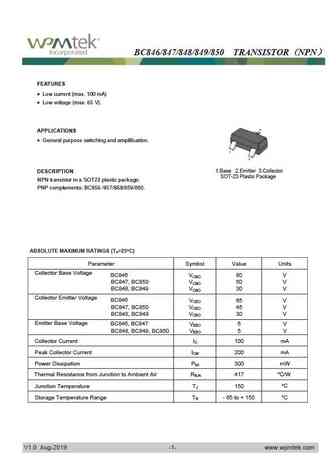

BC846/847/848/849/850 TRANSISTORNPNFEATURES Low current (max. 100 mA) Low voltage (max. 65 V).APPLICATIONS General purpose switching and amplification.1.Base 2.Emitter 3.Collector DESCRIPTIONSOT-23 Plastic PackageNPN transistor in a SOT23 plastic package. PNP complements: BC856 /857/858/859/860.ABSOLUTE MAXIMUM RATINGS (T =25C)AParameter Symbol Val
bc846a bc846b bc846c bc847a bc847b bc847c bc848a bc848b bc848c bc849a bc849b bc849c bc850a bc850b bc850c.pdf
BC846 THRU BC850BC846 THRU BC850BC846 THRU BC850BC846 THRU BC850BC8 46 THRU BC8 50TRANSISTOR(NPN)FEATURE Low current (max. 100 mA)SOT-23 Low voltage (max. 65 V).1BASE APPLICATIONS2EMITTER General purpose switching and amplification. 3COLLECTOR DESCRIPTION NPN transistor in a SOT23 plastic package. PNP complements: BC856 /857/858/859/86
bc849b bc849c.pdf
RoHS RoHSCOMPLIANT COMPLIANT BC849B&BC849C NPN Transistor Features Epoxy meets UL-94 V-0 flammability rating Halogen free available upon request by adding suffix HF Moisture Sensitivity Level 1 Surface mount package ideally Suited for Automatic Insertion NPN Mechanical Data ackage: SOT-23 P Terminals: Tin plated leads, solderable pe
