HGTH12N50E1D PDF and Equivalents Search



HGTH12N50E1D PDF Specs and Replacement


   Type Designator: HGTH12N50E1D
   Type: IGBT
   Type of IGBT Channel: N

Absolute Maximum Ratings


   Pc ⓘ - Maximum Power Dissipation: 75 W
   |Vce|ⓘ - Maximum Collector-Emitter Voltage: 500 V
   |Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
   |Ic| ⓘ - Maximum Collector Current: 12 A @25℃
   Tj ⓘ - Maximum Junction Temperature: 150 ℃

Electrical Characteristics


   |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 2.5 V @25℃
   tr ⓘ - Rise Time, typ: 50 nS
   Package: TO218


 HGTH12N50E1D Substitution

   - IGBT ⓘ Cross-Reference Search



HGTH12N50E1D PDF specs

 ..1. Size:45K  1
 hgth12n40c1d hgth12n40e1d hgth12n50c1d hgth12n50e1d.pdf pdf_icon

HGTH12N50E1D

HGTH12N40C1D, HGTH12N40E1D, S E M I C O N D U C T O R HGTH12N50C1D, HGTH12N50E1D 12A, 400V and 500V N-Channel IGBTs with Anti-Parallel Ultrafast Diodes April 1995 Features Package JEDEC TO-218AC 12A, 400V and 500V VCE(ON) 2.5V Max. EMITTER TFALL 1 s, 0.5 s COLLECTOR GATE Low On-State Voltage Fast Switching Speeds COLLECTOR High Input Impedance (FLANG... See More ⇒

 3.1. Size:333K  1
 hgth12n40c1 hgth12n40e1 hgth12n50c1 hgth12n50e1 hgtm12n40c1 hgtm12n40e1 hgtm12n50c1 hgtm12n50e1 hgtp10n40c1 hgtp10n40e1 hgtp10n50c1 hgtp10n50e1.pdf pdf_icon

HGTH12N50E1D

... See More ⇒

 3.2. Size:49K  1
 hgth12n40c1 hgth12n40e1 hgth12n50c1 hgth12n50e1 hgtp10n40c1 hgtp10n40e1 hgtp10n50c1 hgtp10n50e1.pdf pdf_icon

HGTH12N50E1D

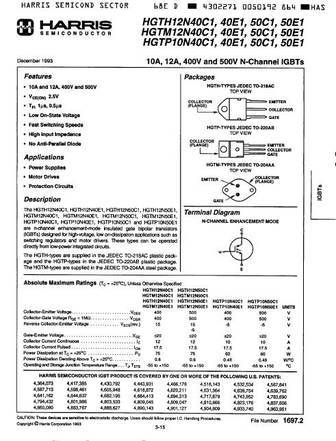

HGTP10N40C1, 40E1, 50C1, 50E1, S E M I C O N D U C T O R HGTH12N40C1, 40E1, 50C1, 50E1 10A, 12A, 400V and 500V N-Channel IGBTs April 1995 Features Packages HGTH-TYPES JEDEC TO-218AC 10A and 12A, 400V and 500V EMITTER VCE(ON) 2.5V Max. COLLECTOR TFI 1 s, 0.5 s GATE COLLECTOR (FLANGE) Low On-State Voltage Fast Switching Speeds High Input Impedance ... See More ⇒

 7.1. Size:45K  harris semi
 hgth12n4.pdf pdf_icon

HGTH12N50E1D

HGTH12N40C1D, HGTH12N40E1D, S E M I C O N D U C T O R HGTH12N50C1D, HGTH12N50E1D 12A, 400V and 500V N-Channel IGBTs with Anti-Parallel Ultrafast Diodes April 1995 Features Package JEDEC TO-218AC 12A, 400V and 500V VCE(ON) 2.5V Max. EMITTER TFALL 1 s, 0.5 s COLLECTOR GATE Low On-State Voltage Fast Switching Speeds COLLECTOR High Input Impedance (FLANG... See More ⇒

SHOW MORE

Specs: HGTG7N60A4D , HGTH12N40C1 , HGTH12N40C1D , HGTH12N40E1 , HGTH12N40E1D , HGTH12N50C1 , HGTH12N50C1D , HGTH12N50E1 , RJP63K2DPP-M0 , HGTM12N40C1 , HGTM12N40E1 , HGTP10N120BN , HGTP10N40C1 , HGTP10N40C1D , HGTP10N40E1 , HGTP10N40E1D , HGTP10N40F1D .
