JJT60N65UH Datasheet and Replacement


   Type Designator: JJT60N65UH
   Type: IGBT + Anti-Parallel Diode
   Marking Code: T6065UH
   Type of IGBT Channel: N
   Pc ⓘ - Maximum Power Dissipation: 394 W
   |Vce|ⓘ - Maximum Collector-Emitter Voltage: 650 V
   |Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
   |Ic| ⓘ - Maximum Collector Current: 120 A @25℃
   |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 1.9 V @25℃
   |VGEth|ⓘ - Maximum G-E Threshold Voltag: 5.7 V
   Tj ⓘ - Maximum Junction Temperature: 175 ℃
   tr ⓘ - Rise Time, typ: 100 nS
   Coesⓘ - Output Capacitance, typ: 170 pF
   Qg ⓘ - Total Gate Charge, typ: 120 nC
   Package: TO3P


 JJT60N65UH substitution

   - IGBT ⓘ Cross-Reference Search



JJT60N65UH Datasheet (PDF)

 ..1. Size:3908K  jiejie micro
 jjt60n65uh.pdf pdf_icon

JJT60N65UH

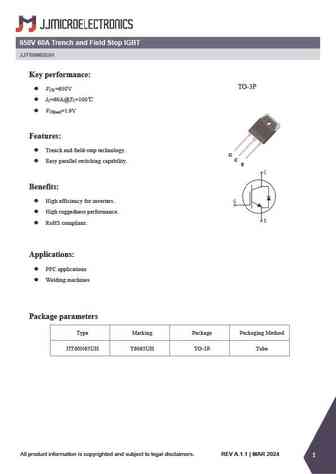

650V 60A Trench and Field Stop IGBTJJT60N65UHKey performance:TO-3P V =650VCE I =60A@T =100C C V =1.9VCE(sat)Features: Trench and field-stop technology.GC Easy parallel switching capability.EBenefits: High efficiency for inverters. High ruggedness performance. RoHS compliant.Applications: PFC applications Welding machin

 5.1. Size:3905K  jiejie micro
 jjt60n65ue.pdf pdf_icon

JJT60N65UH

650V 60A Trench and Field Stop IGBTJJT60N65UEKey performance: V =650VCETO-247 I =60A@T =100C C V =1.9VCE(sat)Features: Trench and field-stop technology. Easy parallel switching capability.GCEBenefits: High efficiency for inverters. High ruggedness performance. RoHS compliant.Applications: PFC applications Welding machi

 6.1. Size:3882K  jiejie micro
 jjt60n65he.pdf pdf_icon

JJT60N65UH

650V 60A Trench and Field Stop IGBTJJT60N65HEKey performance: V =650VCETO-247 I =60A@T =100C C V =1.9VCE(sat)Features: Trench and field-stop technology. Easy parallel switching capability.GCEBenefits: High efficiency for inverters. High ruggedness performance. RoHS compliant.Applications: PFC applications Uninterruptib
