BSO604NS2 PDF and Equivalents Search



BSO604NS2 Specs and Replacement

Type Designator: BSO604NS2

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 2 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 55 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 8 nS

Cossⓘ - Output Capacitance: 154 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.035 Ohm

Package: SO8

BSO604NS2 substitution

- MOSFET ⓘ Cross-Reference Search



BSO604NS2 datasheet

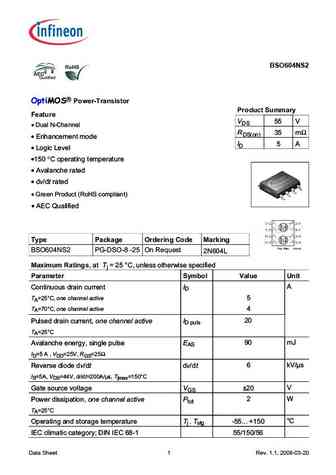

 ..1. Size:814K  infineon
 bso604ns2 bso604ns2 ds-11.pdf pdf_icon

BSO604NS2

BSO604NS2 Green Product (RoHS compliant) AEC Qualified G 25 On Request ... See More ⇒

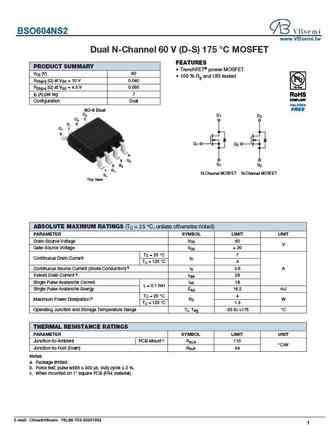

 ..2. Size:951K  cn vbsemi
 bso604ns2.pdf pdf_icon

BSO604NS2

BSO604NS2 www.VBsemi.tw Dual N-Channel 60 V (D-S) 175 C MOSFET FEATURES PRODUCT SUMMARY TrenchFET power MOSFET VDS (V) 60 100 % Rg and UIS tested RDS(on) ( ) at VGS = 10 V 0.040 RDS(on) ( ) at VGS = 4.5 V 0.055 ID (A) per leg 7 Configuration Dual SO-8 Dual D2 D1 D2 D2 5 D1 6 D1 7 8 G1 G2 4 G2 3 3 S1 S2 S2 S2 2 2 G G1 1 1 N-Channel MOSFET N-Channe... See More ⇒
