F5038H Specs and Replacement

Type Designator: F5038H

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 30 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 50 V

|Id| ⓘ - Maximum Drain Current: 3 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.16 Ohm

Package: TO220F5

F5038H substitution

- MOSFET ⓘ Cross-Reference Search



F5038H datasheet

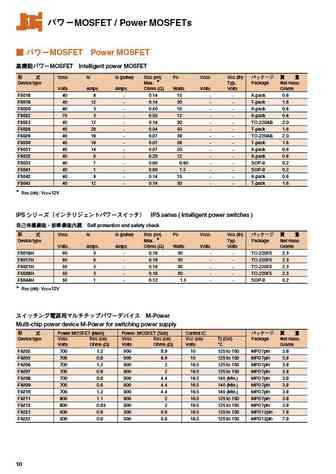

 9.1. Size:40K  fuji
 f5016 f5017 f5018 f5019 f5020 f5021 f5022 f5023 f5028 f5029 f5030 f5031 f5032 f5033 f5038 f5041 f5042 f5043 f5044 f9202 f9203 f9206 f9207 f9208 f9209.pdf pdf_icon

F5038H

MOSFET / P wer MOSFETs MOSFET P wer MOSFET F T I F T VDSS ID ID (pulse) RDS (on) PD VGSS VGS (th) Device type Max. Typ. Package Net mass Volts Amps. Amps. Ohms ( ) Watts Volts Volts Grams F5018 40 8 - 0.14 15 - - K-pack 0.6 F5019 40 12 - 0.14 30 - - T-pack 1.6 F5020 40 3... See More ⇒
