AP50T10GS-HF Specs and Replacement

Type Designator: AP50T10GS-HF

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 89.2 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 37 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 42 nS

Cossⓘ - Output Capacitance: 190 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.03 Ohm

Package: TO263

AP50T10GS-HF substitution

- MOSFET ⓘ Cross-Reference Search



AP50T10GS-HF datasheet

 ..1. Size:94K  ape
 ap50t10gs-hf.pdf pdf_icon

AP50T10GS-HF

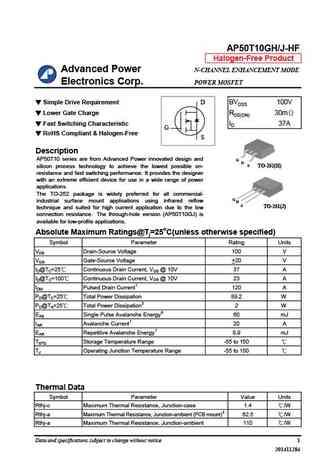

AP50T10GS-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement D BVDSS 100V Lower Gate Charge RDS(ON) 30m Fast Switching Characteristic ID 37A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, G D rug... See More ⇒

 5.1. Size:167K  ape
 ap50t10gs.pdf pdf_icon

AP50T10GS-HF

AP50T10GS-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement D BVDSS 100V Lower Gate Charge RDS(ON) 30m Fast Switching Characteristic ID 37A G RoHS Compliant & Halogen-Free S Description AP50T10 series are from Advanced Power innovated design and silicon process technology to achieve the lowest ... See More ⇒

 6.1. Size:94K  ape
 ap50t10gm-hf.pdf pdf_icon

AP50T10GS-HF

AP50T10GM-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge D BVDSS 100V Single Drive Requirement RDS(ON) 30m Surface Mount Package ID 6.5A G Halogen Free & RoHS Compliant Product S D D Description D D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching,... See More ⇒

 6.2. Size:58K  ape
 ap50t10gi-hf.pdf pdf_icon

AP50T10GS-HF

AP50T10GI-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement D BVDSS 100V Lower Gate Charge RDS(ON) 30m Fast Switching Characteristic ID 21.8A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggediz... See More ⇒

SHOW MORE

Detailed specifications: AP9467GJ-HF, AP9467GS, AP50T10AGI-HF, AP50T10GH-HF, AP50T10GI-HF, AP50T10GJ-HF, AP50T10GM-HF, AP50T10GP-HF, IRFB4110, AP5321GM-HF, AP5322GM-HF, AP5331GM-HF, AP5521GH-HF, AP5521GM-HF, AP55T06GI-HF, AP55T06GS-HF, AP55T10GH-HF
