AP9575GH-HF Specs and Replacement
Type Designator: AP9575GH-HF
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Absolute Maximum Ratings
Pd ⓘ
- Maximum Power Dissipation: 31.3 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V
|Id| ⓘ - Maximum Drain Current: 15 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 17 nS
Cossⓘ -
Output Capacitance: 115 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.09 Ohm
Package: TO-252
- MOSFET ⓘ Cross-Reference Search
AP9575GH-HF datasheet
..1. Size:98K ape
ap9575gh-hf ap9575gj-hf.pdf
AP9575GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET D Lower Gate Charge BVDSS -60V Simple Drive Requirement RDS(ON) 90m Fast Switching Characteristic ID -15A G RoHS Compliant S Description G D The TO-252 package is widely preferred for commercial-industrial S TO-252(H) surface mount applications and suite... See More ⇒
..2. Size:232K ape
ap9575gj-hf ap9575gh-hf.pdf

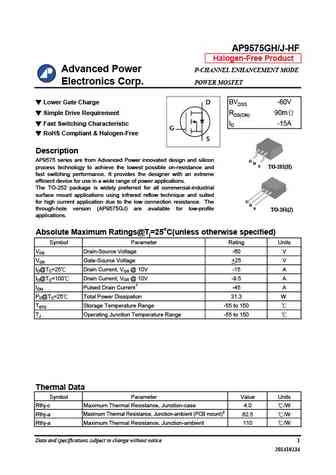

AP9575GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge D BVDSS -60V Simple Drive Requirement RDS(ON) 90m Fast Switching Characteristic ID -15A G RoHS Compliant & Halogen-Free S Description AP9575 series are from Advanced Power innovated design and silicon G D S process technology to achieve th... See More ⇒
6.1. Size:98K ape
ap9575gh ap9575gj.pdf
AP9575GH/J RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET D Lower Gate Charge BVDSS -60V Simple Drive Requirement RDS(ON) 90m Fast Switching Characteristic ID -15A G S Description G D The TO-252 package is widely preferred for commercial-industrial S TO-252(H) surface mount applications and suited for low voltage appl... See More ⇒
6.2. Size:1425K cn vbsemi
ap9575gh.pdf
AP9575GH www.VBsemi.tw P-Channel 60-V (D-S) MOSFET FEATURES PRODUCT SUMMARY TrenchFET Power MOSFET VDS (V) RDS(on) ( ) ID (A) Qg (Typ) 100 % UIS Tested 0.061 at VGS = - 10 V - 30 APPLICATIONS - 60 10 0.072 at VGS = - 4.5 V - 26 Load Switch S TO-252 G G D S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 C, unless otherwise noted Parameter Symb... See More ⇒
7.1. Size:57K ape
ap9575gm-hf.pdf
AP9575GM-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge BVDSS -60V D D D Simple Drive Requirement RDS(ON) 90m D Fast Switching Characteristic ID -4A G S RoHS Compliant & Halogen-Free S S SO-8 Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fa... See More ⇒
7.2. Size:93K ape
ap9575gi.pdf
AP9575GI RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID -16A G D TO-220CFM(I) S Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, l... See More ⇒
7.3. Size:65K ape
ap9575gm.pdf
AP9575GM RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge BVDSS -60V D D D Simple Drive Requirement RDS(ON) 90m D Fast Switching Characteristic ID -4A G S S S SO-8 Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device desi... See More ⇒
7.4. Size:94K ape
ap9575gi-hf.pdf
AP9575GI-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID -16A G RoHS Compliant & Halogen-Free D TO-220CFM(I) S Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast swit... See More ⇒
7.5. Size:97K ape
ap9575gp-hf ap9575gs-hf.pdf
AP9575GS/P-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET D Lower Gate Charge BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID -16A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the G designer with the best combination of fast switching, D ... See More ⇒
7.6. Size:52K ape
ap9575gs-hf ap9575gp-hf.pdf
AP9575GS/P-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge D BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID -16A G RoHS Compliant & Halogen-Free S Description AP9575 series are from Advanced Power innovate... See More ⇒
7.7. Size:838K cn vbsemi
ap9575gj.pdf
AP9575GJ www.VBsemi.tw P-Channel 60-V (D-S) MOSFET FEATURES PRODUCT SUMMARY TrenchFET Power MOSFET VDS (V) RDS(on) ( ) ID (A)a Qg (Typ.) 100 % UIS Tested 0.066 at VGS = - 10 V - 20 APPLICATIONS - 60 40 nC at VGS = - 4.5 V - 18 0.080 Load Switch TO-251 S G D P-Channel MOSFET G D S Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 C, unless otherwise noted) Par... See More ⇒
