2N5524 PDF and Equivalents Search



2N5524 Specs and Replacement


   Type Designator: 2N5524
   Type of Transistor: JFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 0.375 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 3.8 V
   |Id| ⓘ - Maximum Drain Current: 0.0075 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   Package: TO-71


 2N5524 substitution

   - MOSFET ⓘ Cross-Reference Search

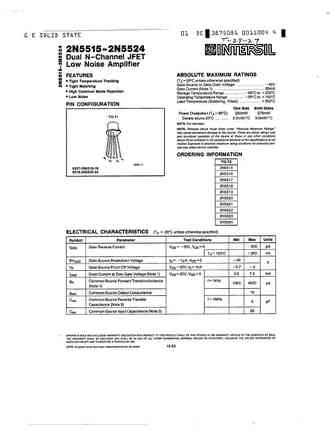

2N5524 datasheet

 ..1. Size:72K  intersil
 2n5515 2n5516 2n5517 2n5518 2n5519 2n5520 2n5521 2n5522 2n5523 2n5524.pdf pdf_icon

2N5524

... See More ⇒

Detailed specifications: 2N5516 , 2N5517 , 2N5518 , 2N5519 , 2N5520 , 2N5521 , 2N5522 , 2N5523 , SPP20N60C3 , 2N5545 , 2N5546 , 2N5547 , 2N5555 , 2N5564 , 2N5565 , 2N5566 , 2N5638 .
