AP0803GMT-A-HF Datasheet. Specs and Replacement

Type Designator: AP0803GMT-A-HF  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 29.7 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 50 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 80 nS

Cossⓘ - Output Capacitance: 180 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0085 Ohm

Package: DFN5X6

  📄📄 Copy

AP0803GMT-A-HF substitution

- MOSFET ⓘ Cross-Reference Search



AP0803GMT-A-HF datasheet

 ..1. Size:95K  ape
 ap0803gmt-a-hf.pdf pdf_icon

AP0803GMT-A-HF

AP0803GMT-A-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement D BVDSS 30V SO-8 Compatible RDS(ON) 8.5m Low On-resistance ID 50A G RoHS Compliant & Halogen-Free S D D Description D D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, rugg... See More ⇒

 4.1. Size:92K  ape
 ap0803gmt-hf.pdf pdf_icon

AP0803GMT-A-HF

AP0803GMT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement D BVDSS 30V SO-8 Compatible RDS(ON) 8.5m Low On-resistance ID 50A G RoHS Compliant S D D Description D D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device des... See More ⇒

 6.1. Size:97K  ape
 ap0803gmp-hf.pdf pdf_icon

AP0803GMT-A-HF

AP0803GMP-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement D BVDSS 30V Low On-resistance RDS(ON) 9.5m RoHS Compliant & Halogen-Free ID 44A G S Description D D Advanced Power MOSFETs from APEC provide the D D D designer with the best combination of fast switching, ruggedized device design,... See More ⇒

 8.1. Size:1531K  1

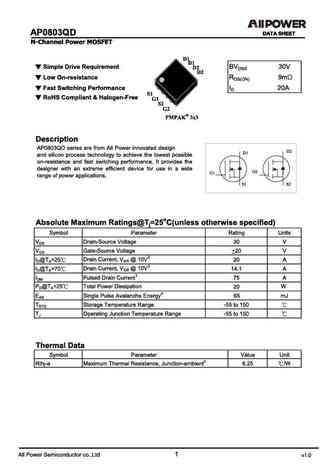

 ap0803qd.pdf pdf_icon
