SFF80N20ZDB MOSFET. Datasheet pdf. Equivalent
Type Designator: SFF80N20ZDB
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pdⓘ - Maximum Power Dissipation: 150 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 200 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 5 V
|Id|ⓘ - Maximum Drain Current: 55 A
Tjⓘ - Maximum Junction Temperature: 175 °C
Qgⓘ - Total Gate Charge: 150 nC
trⓘ - Rise Time: 50 nS
Cossⓘ - Output Capacitance: 1050 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.03 Ohm
Package: TO-254Z
SFF80N20ZDB Transistor Equivalent Substitute - MOSFET Cross-Reference Search

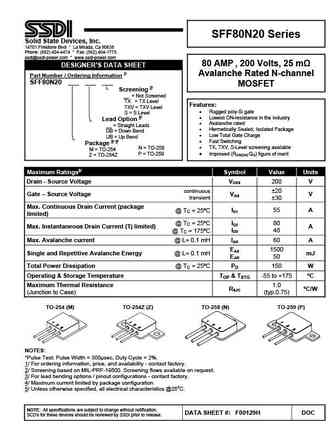

SFF80N20ZDB Datasheet (PDF)
sff80n20mub sff80n20n sff80n20m sff80n20mdb sff80n20ndb sff80n20nub sff80n20p sff80n20pdb sff80n20pub sff80n20zub sff80n20z sff80n20zdb.pdf
SFF80N20 Series Solid State Devices, Inc. 14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.ssdi-power.com 80 AMP , 200 Volts, 25 m DESIGNERS DATA SHEET Avalanche Rated N-channel Part Number / Ordering Information 1/ SFF80N20 ___ ___ ___ MOSFET Screening 2/ __ = Not Screened TX
