FTCO3V455A1 Specs and Replacement

Type Designator: FTCO3V455A1

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 115 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 150 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.00166 Ohm

Package: NA

FTCO3V455A1 substitution

- MOSFET ⓘ Cross-Reference Search

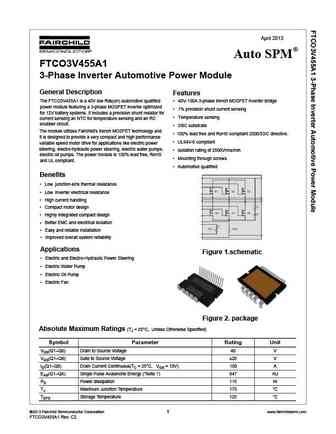

FTCO3V455A1 datasheet

 ..1. Size:667K  fairchild semi
 ftco3v455a1.pdf pdf_icon

FTCO3V455A1

April 2013 Auto SPM FTCO3V455A1 3-Phase Inverter Automotive Power Module General Description Features The FTCO3V455A1 is a 40V low Rds(on) automotive qualified 40V-150A 3-phase trench MOSFET inverter bridge power module featuring a 3-phase MOSFET inverter optimized 1% precision shunt current sensing for 12V battery systems. It includes a precision shunt resistor for ... See More ⇒
